Automatic Level Control Suspension Schematics

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

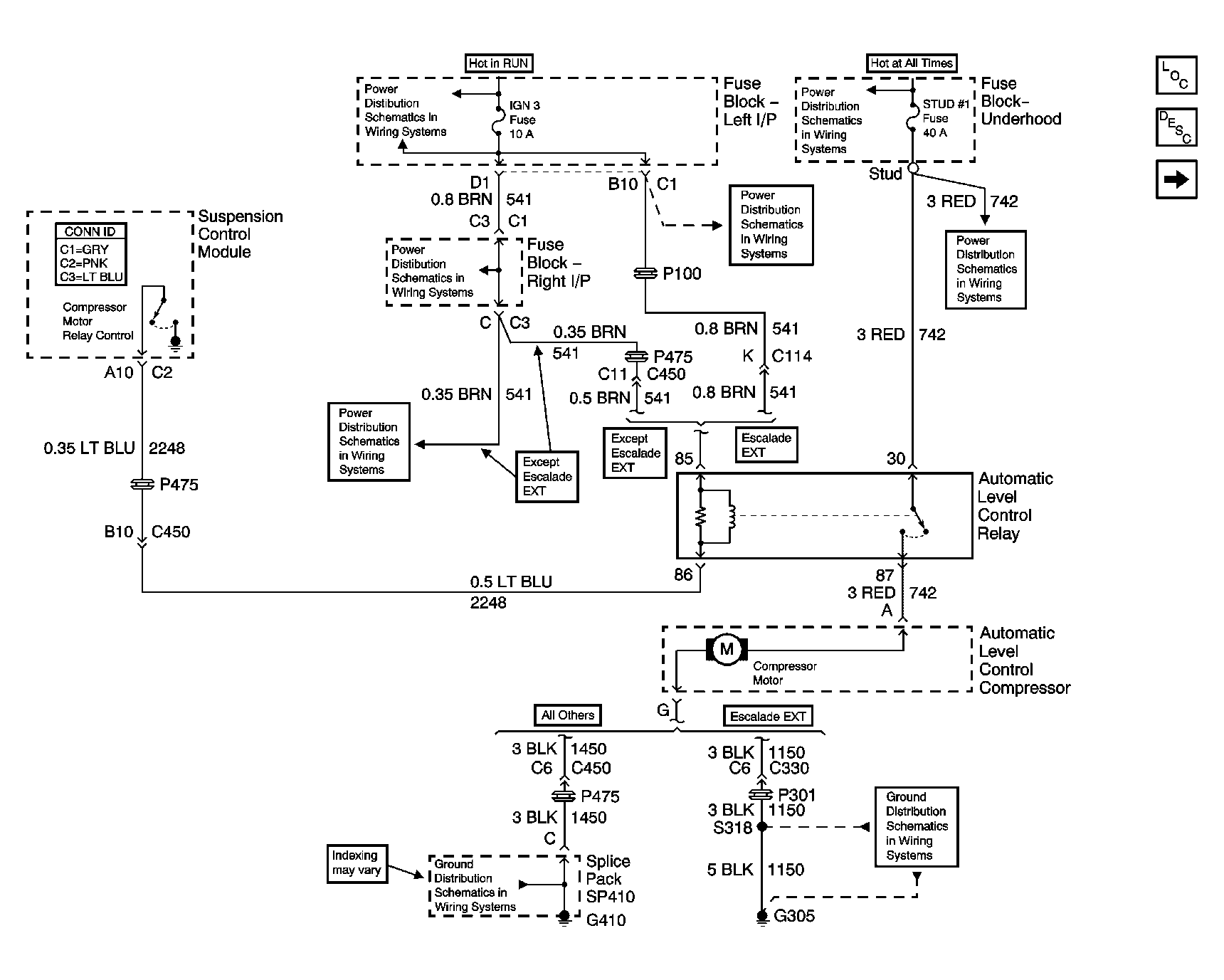

Fig 1: Compressor Control Schematic
GM744462Courtesy of GENERAL MOTORS CORP.

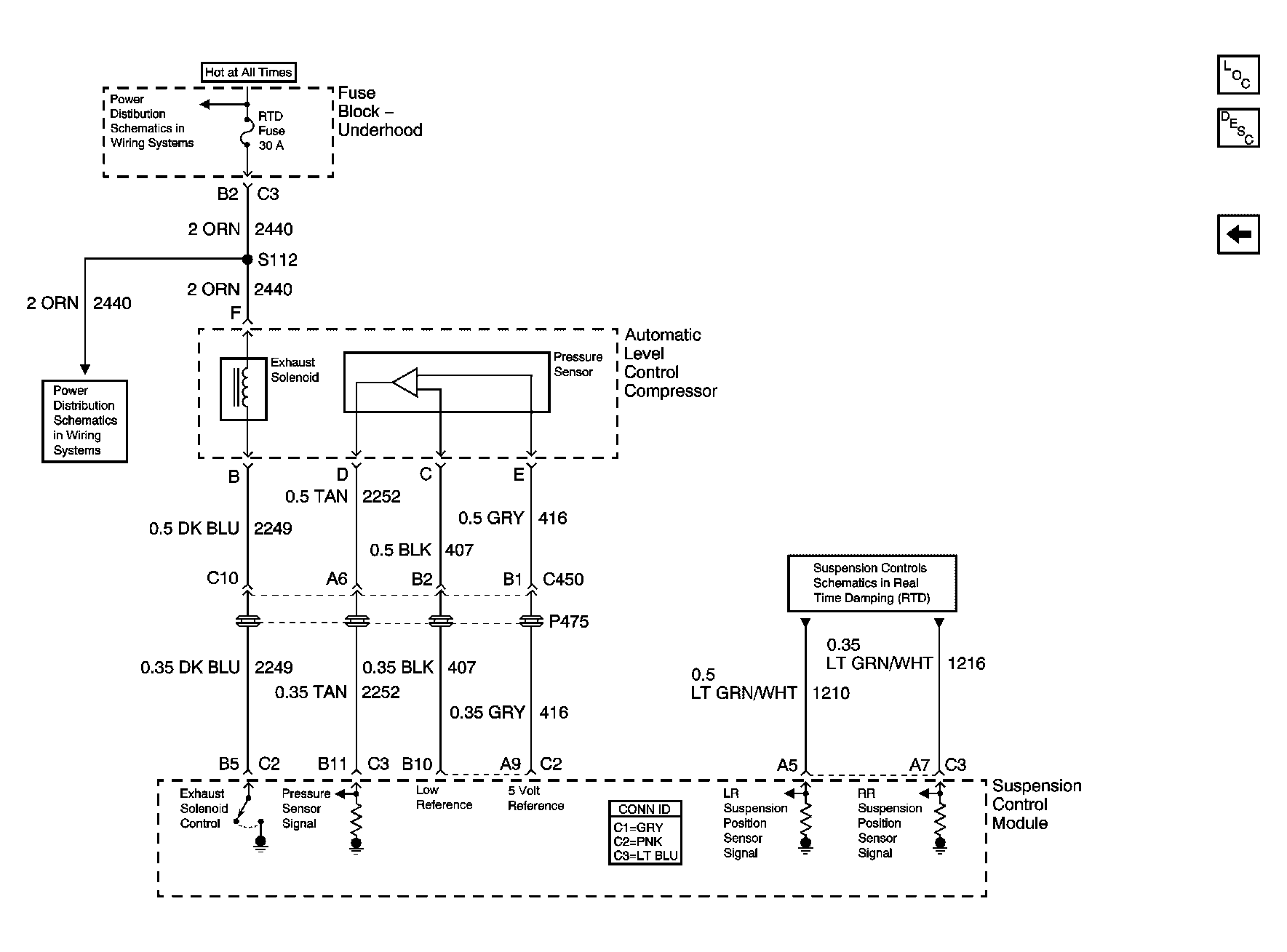

Fig 2: Suspension Level Control Schematic
GM789288Courtesy of GENERAL MOTORS CORP.
