ABS Schematics (Power, Ground, Brake Pressure Modulator Valves)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

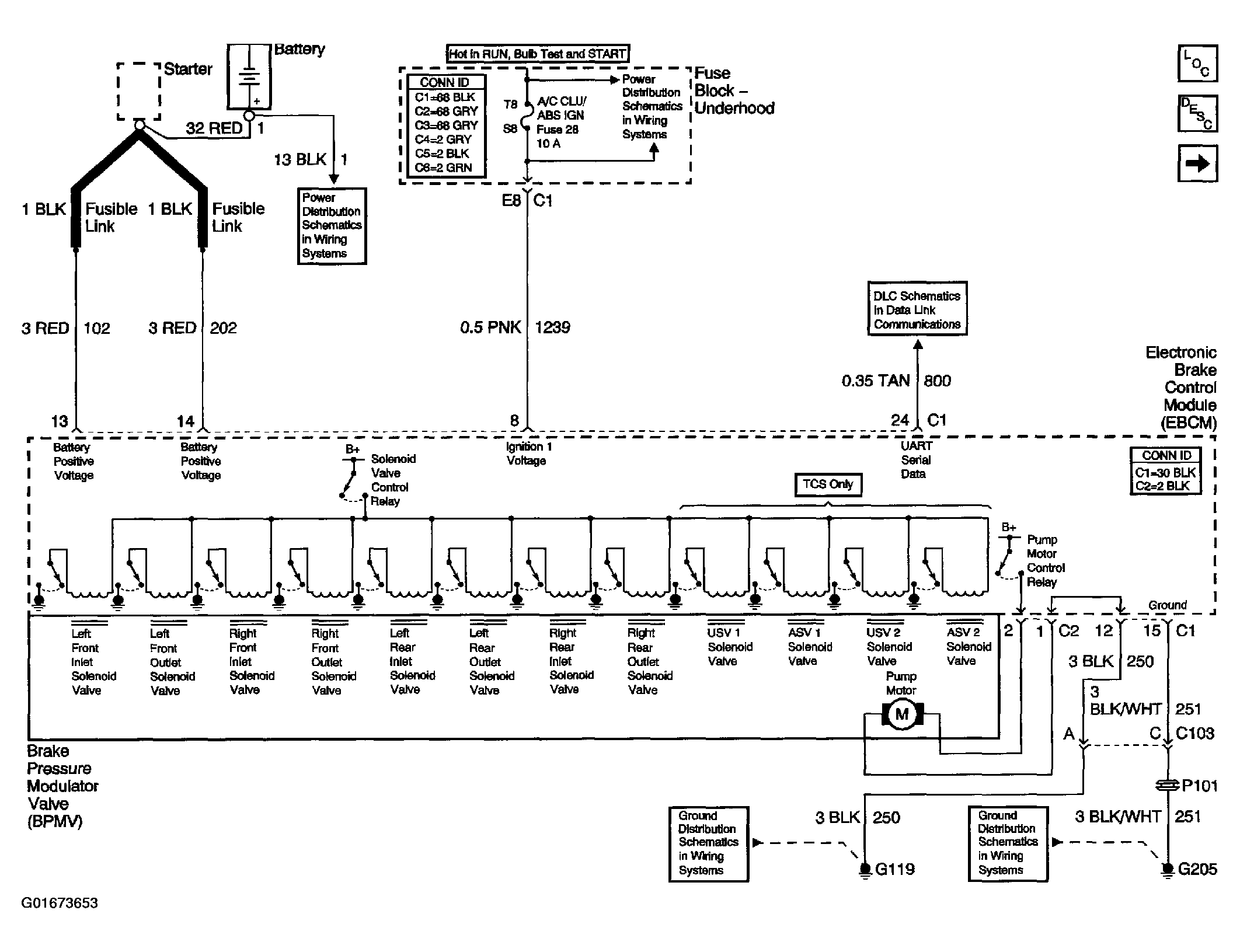

Fig 1: ABS Schematics (Power, Ground, Brake Pressure Modulator Valves)

Courtesy of GENERAL MOTORS CORP.

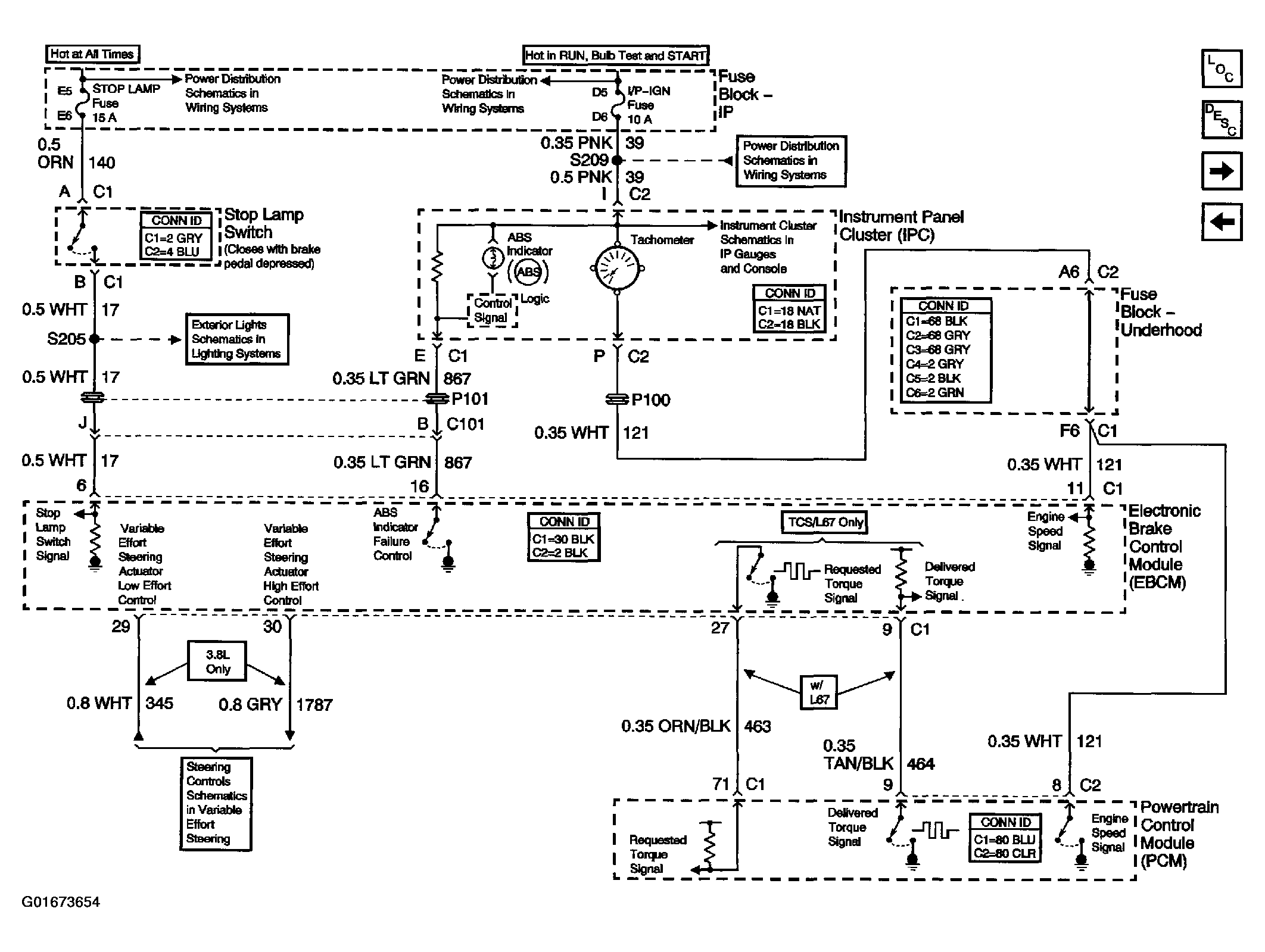

Fig 2: ABS Schematics (ABS Indicator, Torque Signals, and Steering)

Courtesy of GENERAL MOTORS CORP.

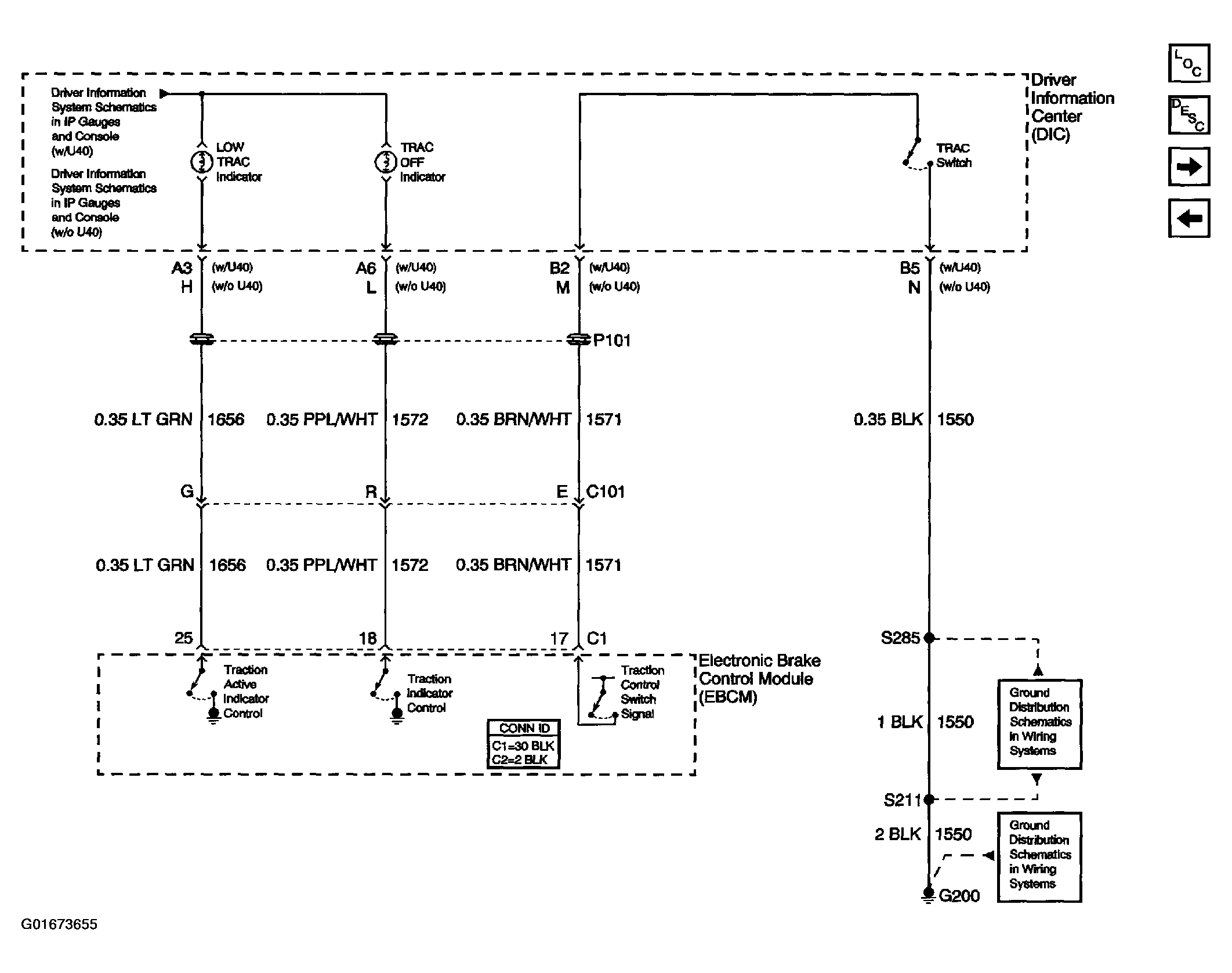

Fig 3: ABS Schematics (Traction Control)

Courtesy of GENERAL MOTORS CORP.

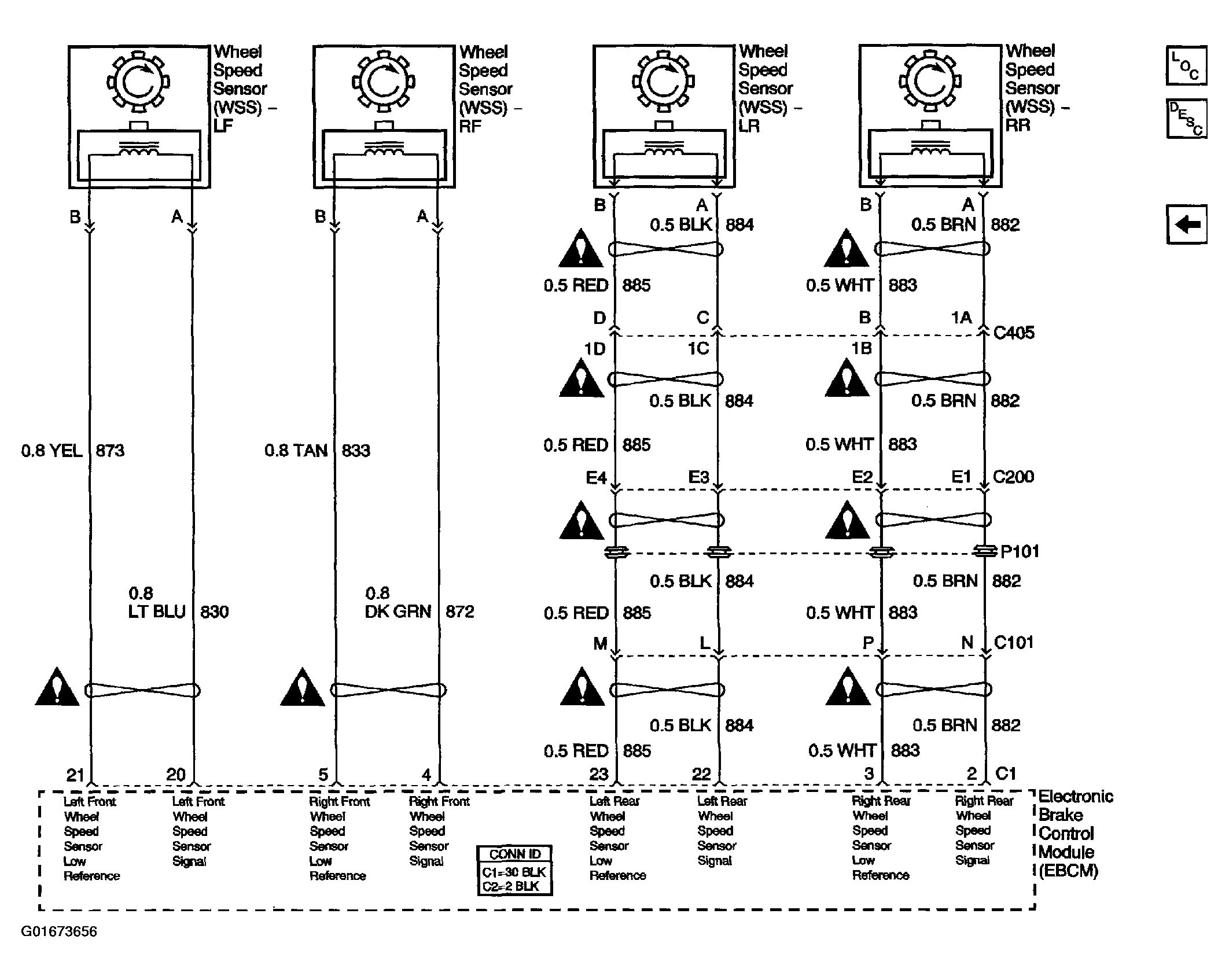

Fig 4: ABS Schematics (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.
