Test Description

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to step numbers on the Diagnostic Table.

  1. 2. This step determines if the DTC is current.

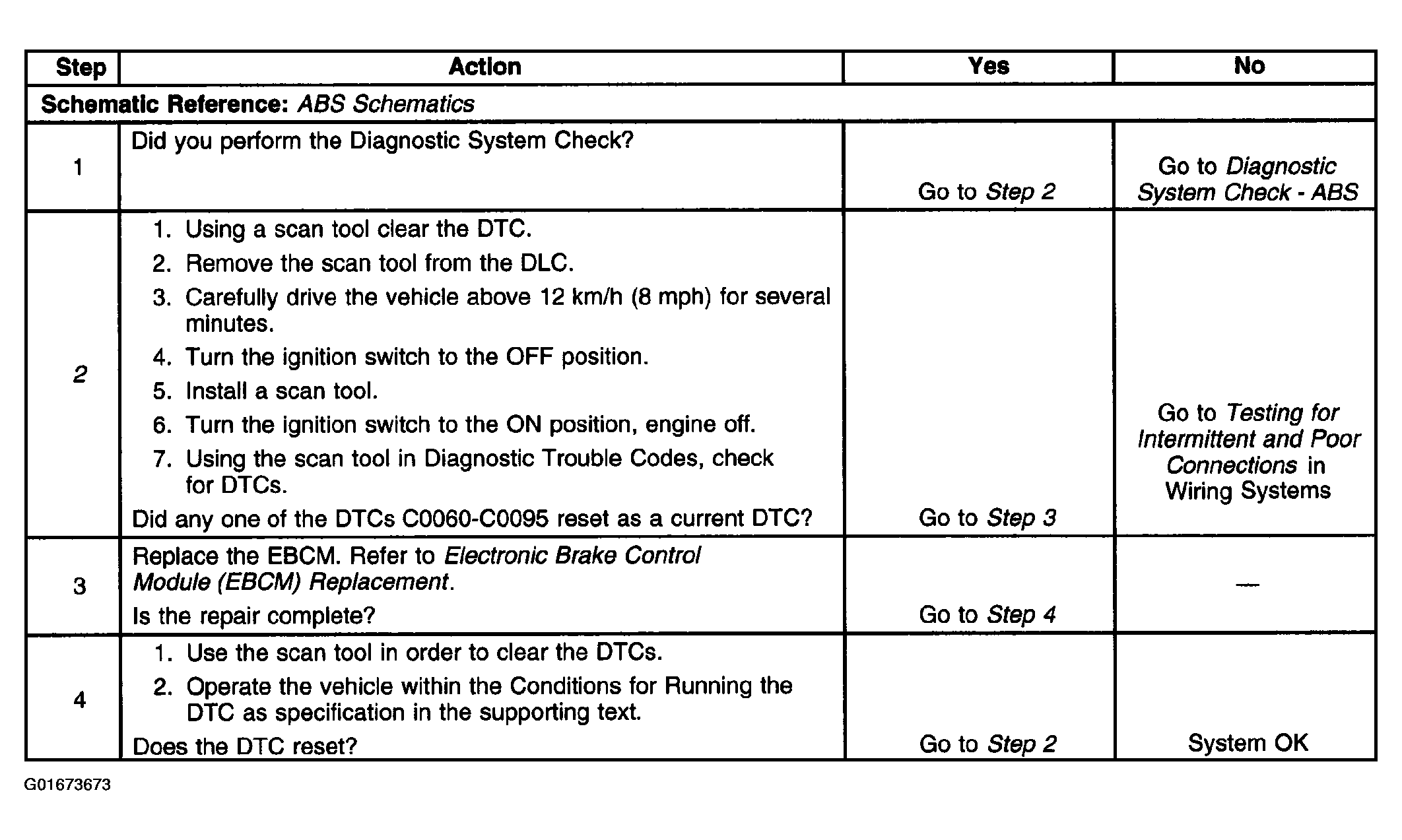

    Fig 1: DTC C0060-C0095
    G01673673Courtesy of GENERAL MOTORS CORP.
