Steering Controls Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Cadillac Escalade EXT. However, it is still accessible from the selected car via links, so may be relevant.

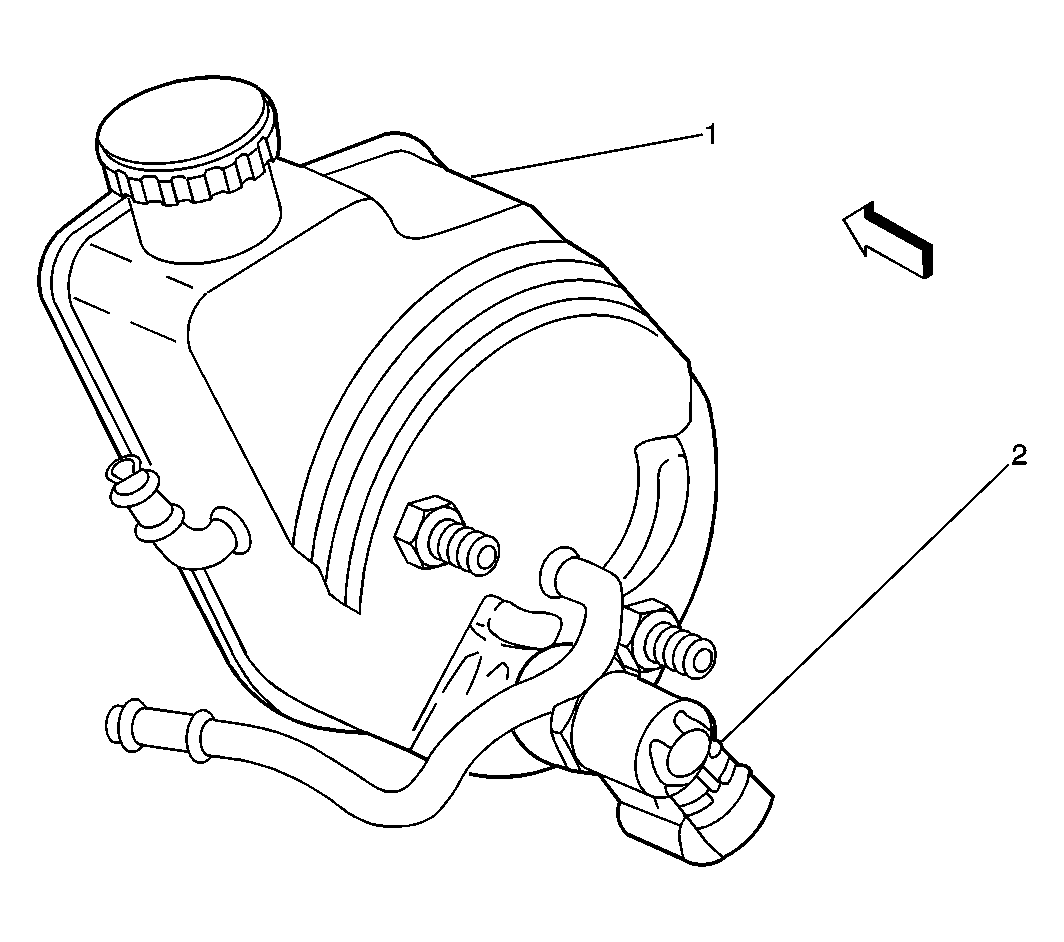

Fig 1: Electronic Variable Orifice (EVO) Solenoid Connector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Pump
2	Electronic Variable Orifice (EVO) Solenoid

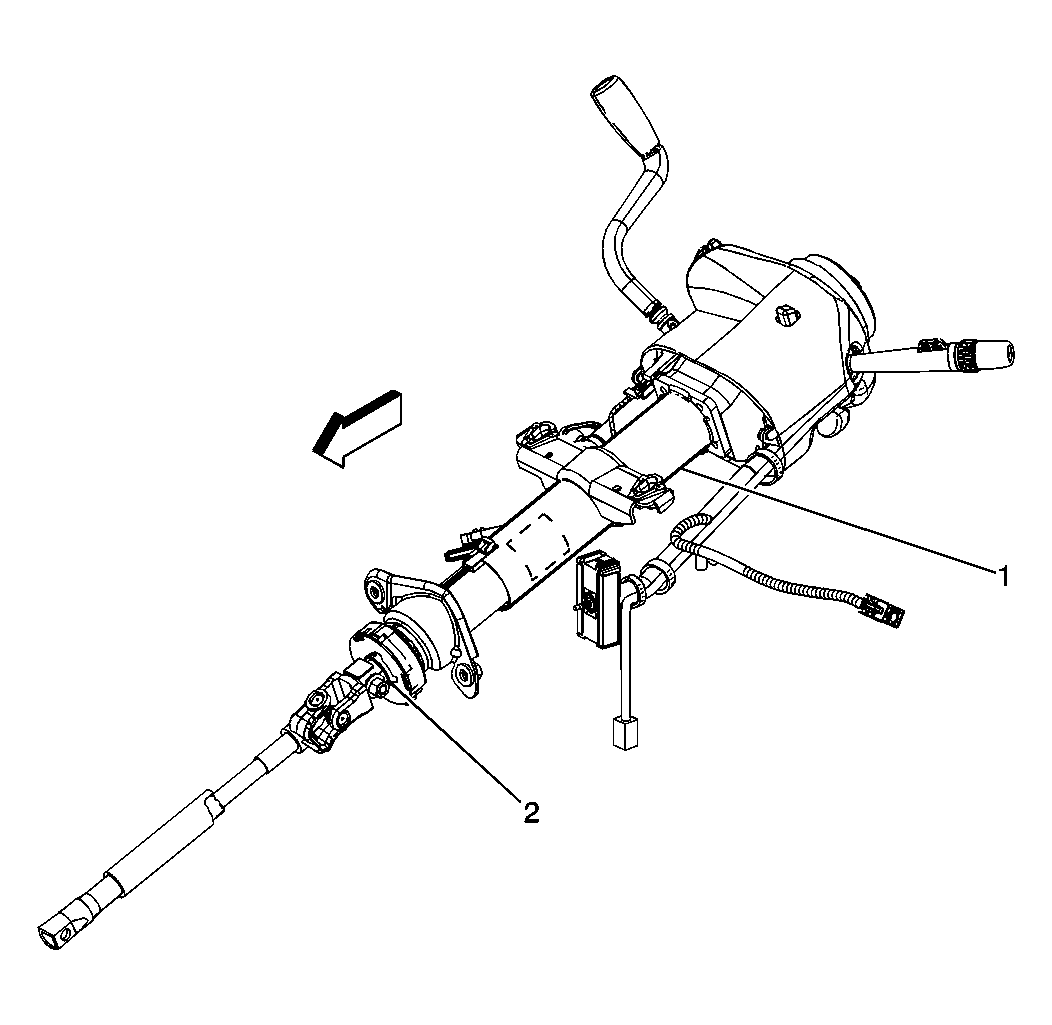

Fig 2: Steering Column Components (RTD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	Steering Wheel Speed/Position Sensor
