Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front wheel drive axle (1, 2) into the transaxle.
  2. Verify that the front wheel drive shaft retaining ring is properly seated:
    • Grasp the inner housing and pull the inner housing outward. Do not pull on the front wheel drive axle shaft.
    • The front wheel drive axle will remain in place when the front wheel drive shaft retaining ring is properly seated.
  3. Install the front wheel drive axle into the front wheel drive shaft bearing.
  4. Connect the ball joint to the steering knuckle. Refer to LOWER BALL JOINT REPLACEMENT .
  5. Connect the outer tie rod assembly to the steering knuckle. Refer to TIE ROD END REPLACEMENT - OUTER .

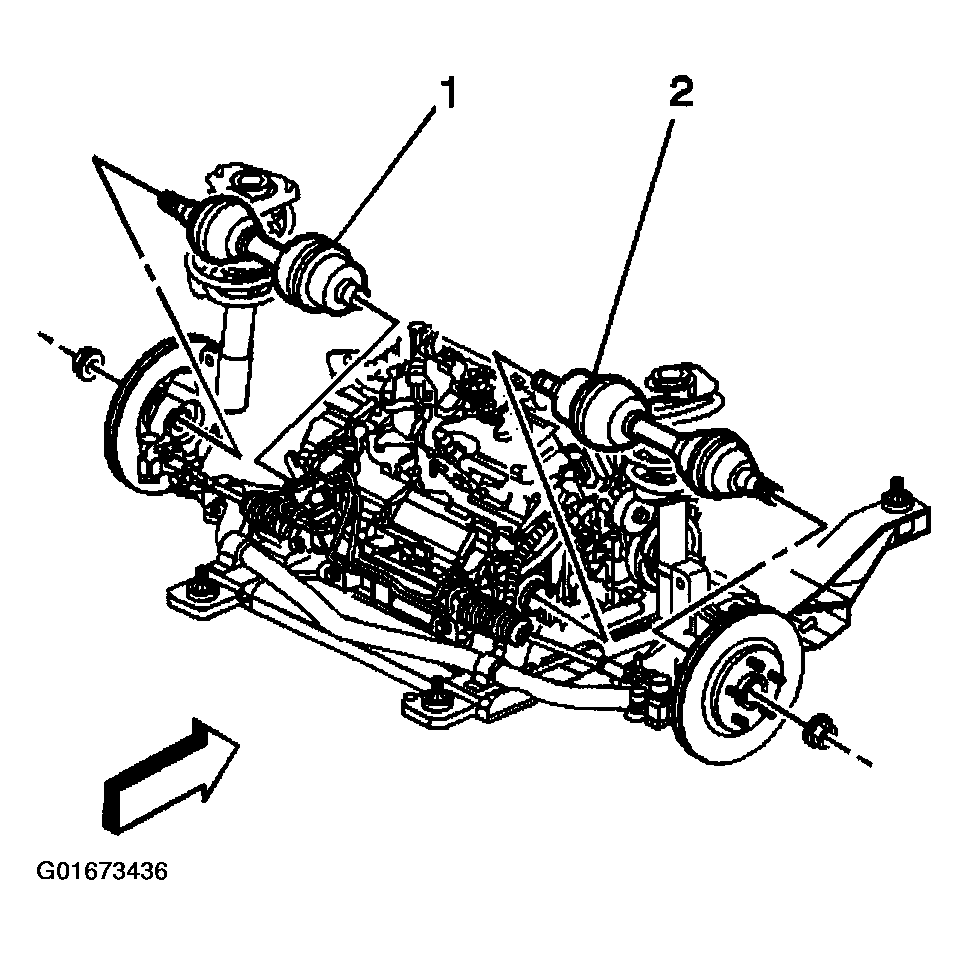

    Fig 1: Installing Front Wheel Drive Axle
    G01673436Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  6. Install a new front wheel drive shaft nut. Insert a drift or a flat-bladed tool into the caliper and the rotor to prevent the rotor from turning.

    Tighten

    Tighten the nut to 215 N.m (159 lb ft).

  7. Install the stabilizer shaft link. Refer to STABILIZER SHAFT LINK REPLACEMENT .
  8. Install the wheel and the tire. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  9. Lower the vehicle.
  10. Inspect the transaxle fluid level.
  11. Inspect the wheel alignment. Refer to MEASURING WHEEL ALIGNMENT .
