Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Use a 36 mm (1.42 in) wheel bolt for front service replacement only.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the brake caliper and bracket. Hang the caliper and the bracket from the vehicle. DO NOT allow the caliper and the bracket to hang by the brake hose. Refer to FRONT BRAKE CALIPER .
  4. Remove the brake rotor. Refer to FRONT BRAKE ROTOR .

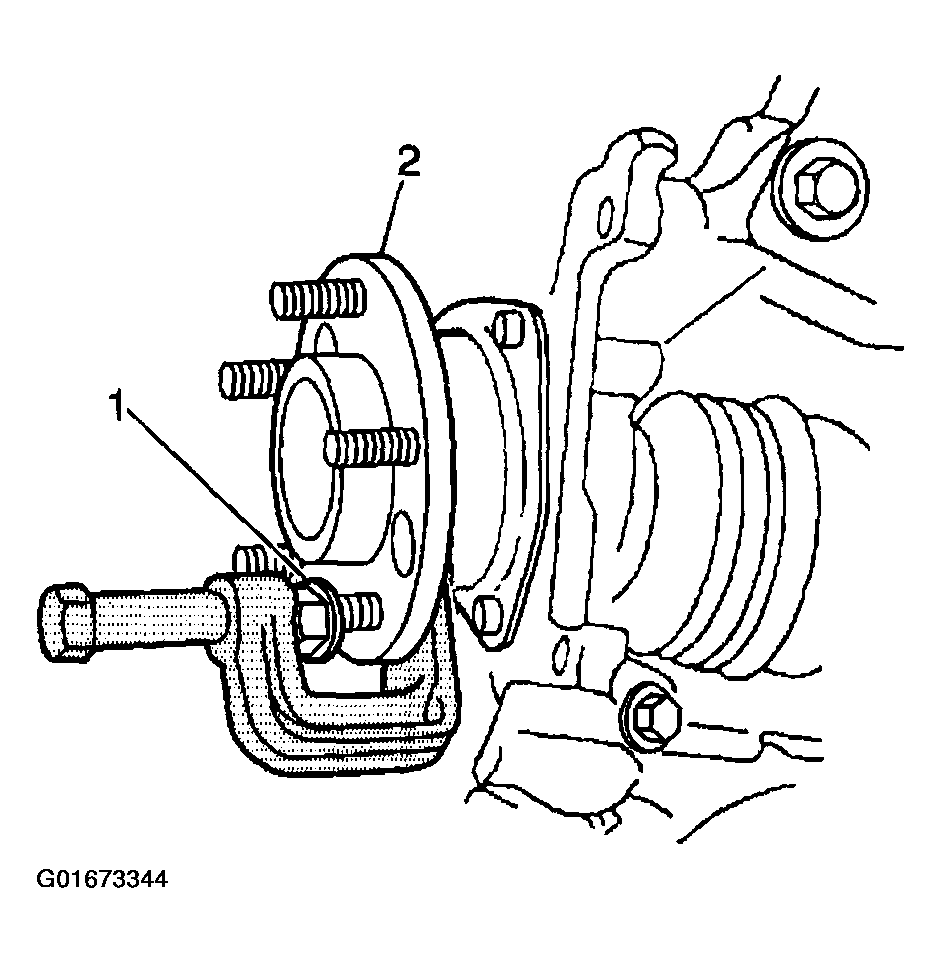

  5. Use the J 6627-A  in order to extract the stud (1) from the hub (2).
    Fig 1: Extracting Stud From Hub
    G01673344Courtesy of GENERAL MOTORS CORP.
