Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the left tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the pinch bolt from the lower intermediate steering shaft. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT .

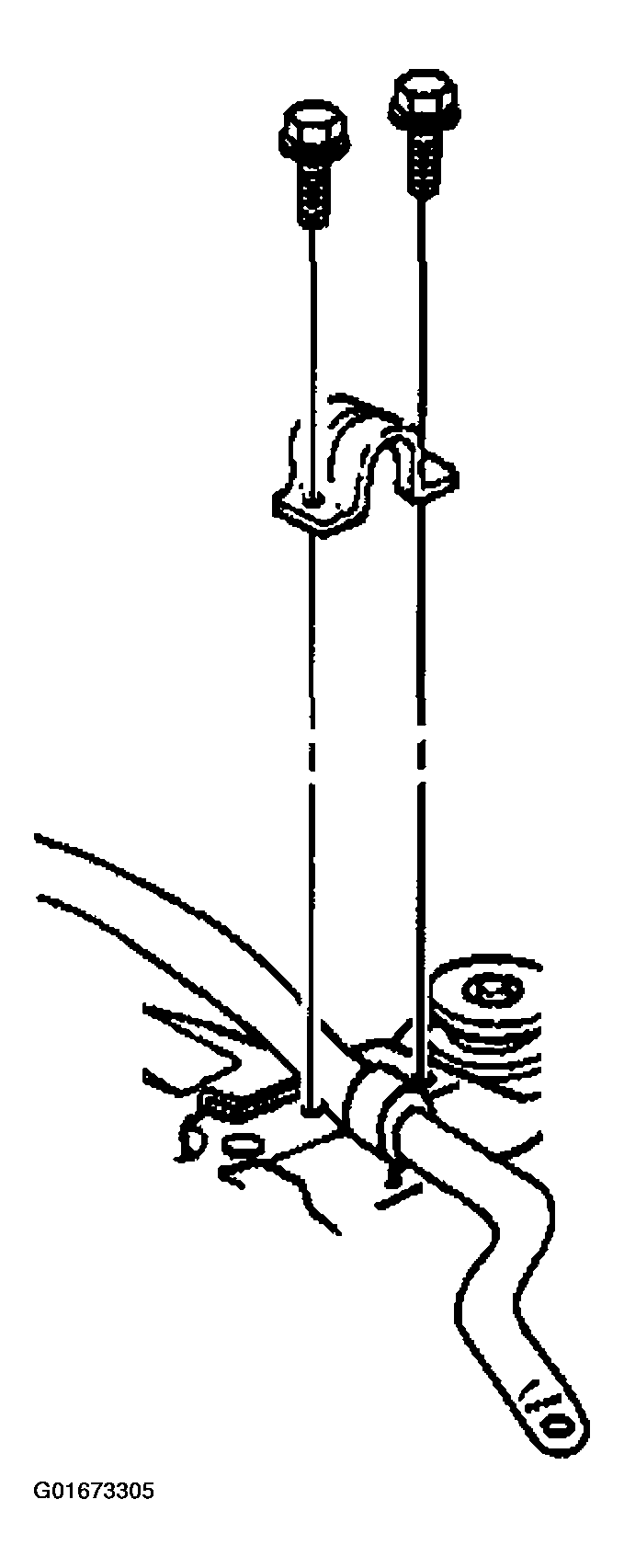

    Fig 1: Removing Insulator Clamps
    G01673305Courtesy of GENERAL MOTORS CORP.
  4. Loosen all insulator clamp attaching bolts.
  5. Place a jackstand under the center of the rear frame crossmember.
  6. Remove the rear frame-to-body bolts.
  7. Lower the rear of the frame just enough to gain access to the stabilizer shaft.
  8. Remove the insulator clamp bolts and the clamps from the frame.
  9. Remove the insulators from the stabilizer bar.
    Fig 2: Removing Insulators From Stabilizer Bar
    G01673306Courtesy of GENERAL MOTORS CORP.
  10. Remove the stabilizer bar links from the control arms. Refer to Stabilizer Shaft Link Replacement .
  11. Pull the stabilizer shaft rearward.
  12. Swing the stabilizer shaft down to remove the stabilizer shaft from the left side of the vehicle.
    Fig 3: Removing Stabilizer Bar Links
    G01673307Courtesy of GENERAL MOTORS CORP.
