Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the left and right side stabilizer shaft insulator bracket bolts.
  3. Remove the left and right side stabilizer shaft insulator brackets.

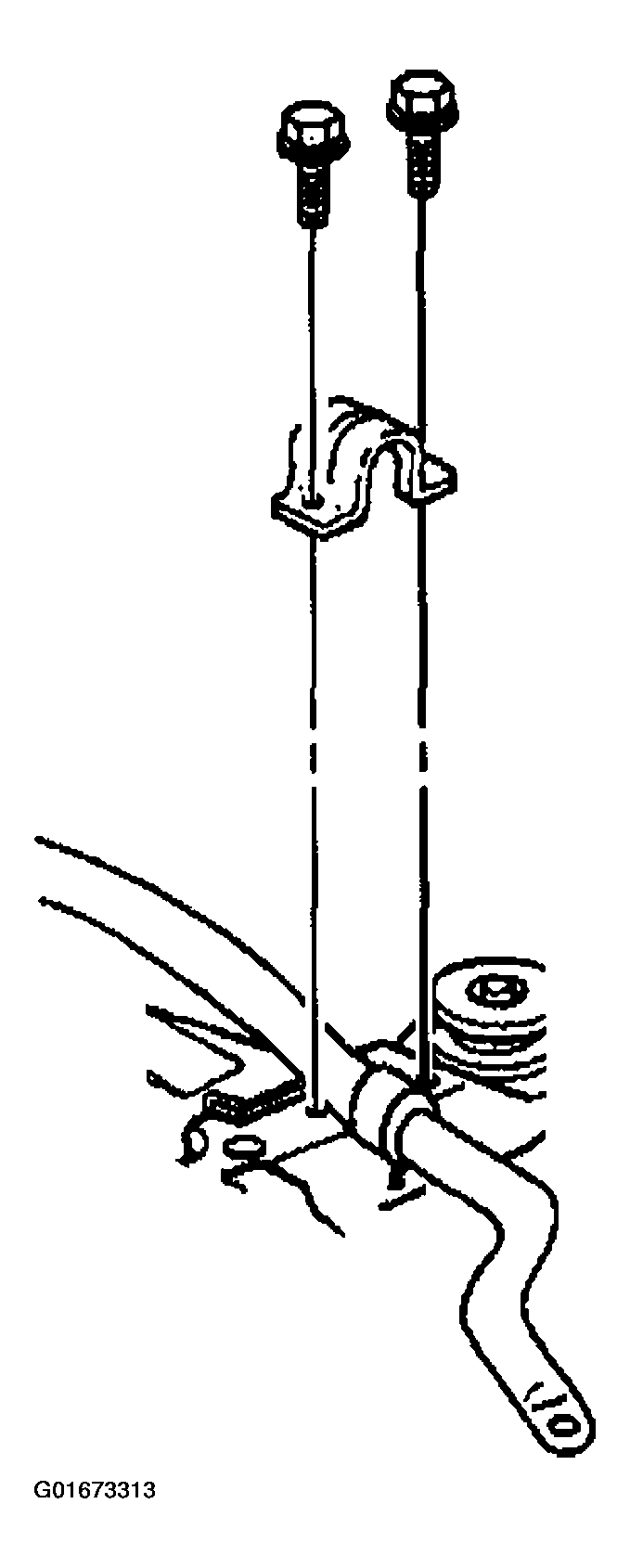

    Fig 1: Removing Insulator Brackets
    G01673313Courtesy of GENERAL MOTORS CORP.
  4. Remove the left and right side stabilizer shaft insulators (1) from the stabilizer shaft (2).
    Fig 2: Removing Insulators From Stabilizer Shaft
    G01673314Courtesy of GENERAL MOTORS CORP.
