Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The lower control arm vertical bushing MUST be installed in the same position which it was removed in order to maintain the original vehicle ride, handling and road feel.
  1. Align the flat edge of the bushing flange to the mark in the control arm (1). Ensure that the flat edge of the bushing flange is 30 degrees (2) from the centerline of the lower control arm. Ensure that the thin slot in the bushing is facing outboard.
  2. Insert the bushing into the control arm.

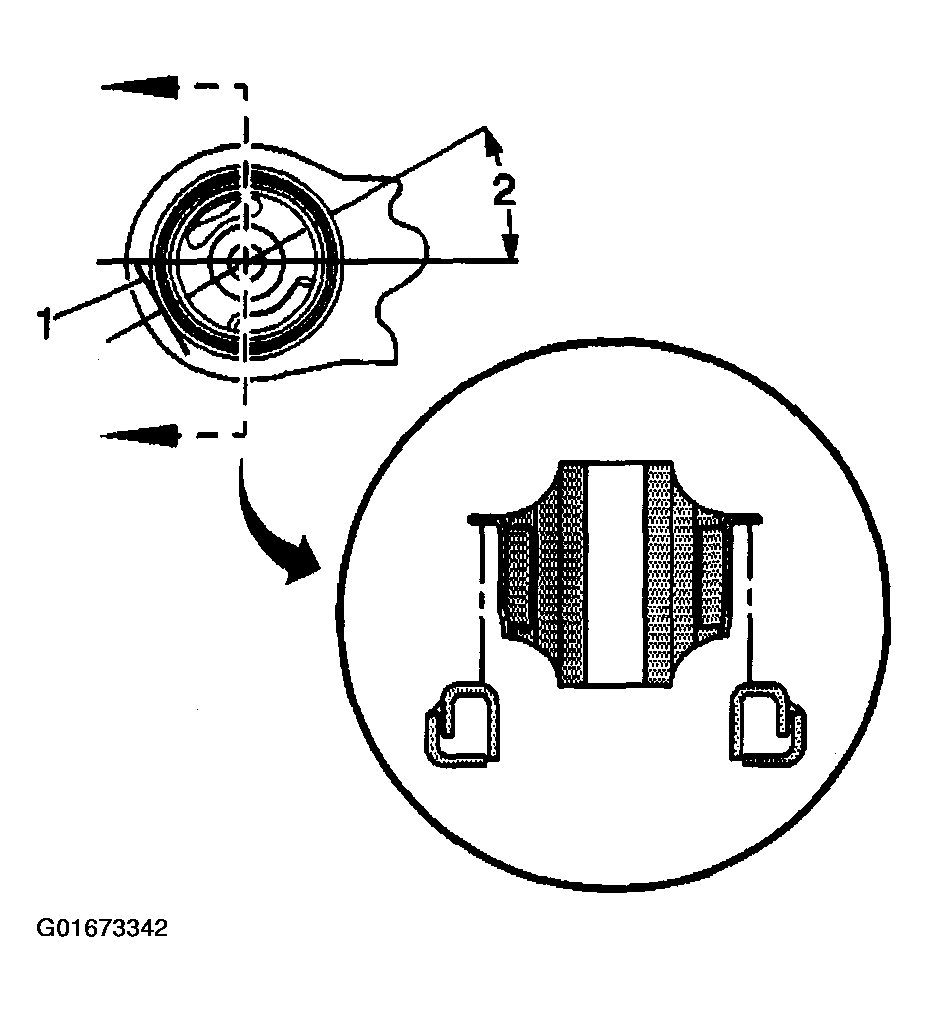

    Fig 1: Inserting Bushing Into Control Arm
    G01673342Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Apply J 23444-A  (or equivalent high pressure lubricant) to the threads of J 21474-27  .
  3. Assemble the following bushing installation tools as shown:
    1. 3.1. J 21474-27
    2. 3.2. J 21474-13
    3. 3.3. J 21474-5
    4. 3.4. J 21474-4
  4. Tighten J 21474-27  .
  5. Disassemble the bushing installation tools.
  6. Install the lower control arm. Refer to Lower Control Arm Replacement .

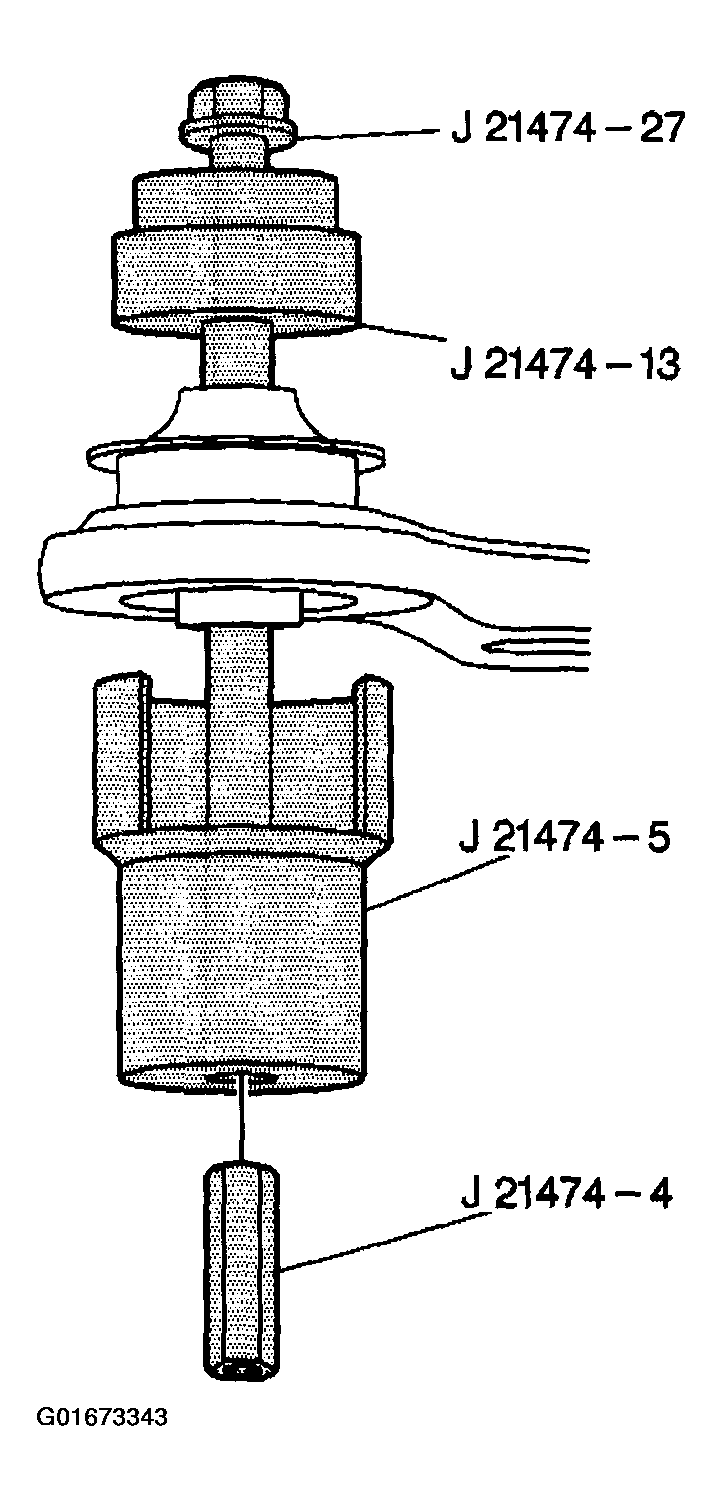

    Fig 2: Identifying Bushing Installation Tools
    G01673343Courtesy of GENERAL MOTORS CORP.
