Trim Height Specifications

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

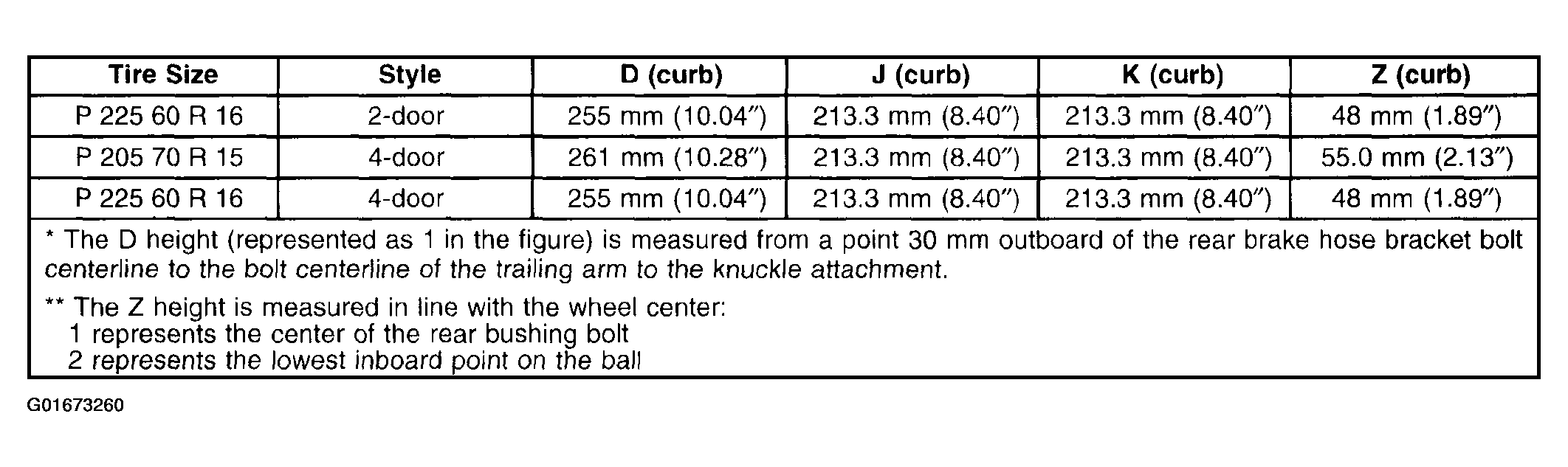

Fig 1: Trim Height Specifications

Courtesy of GENERAL MOTORS CORP.

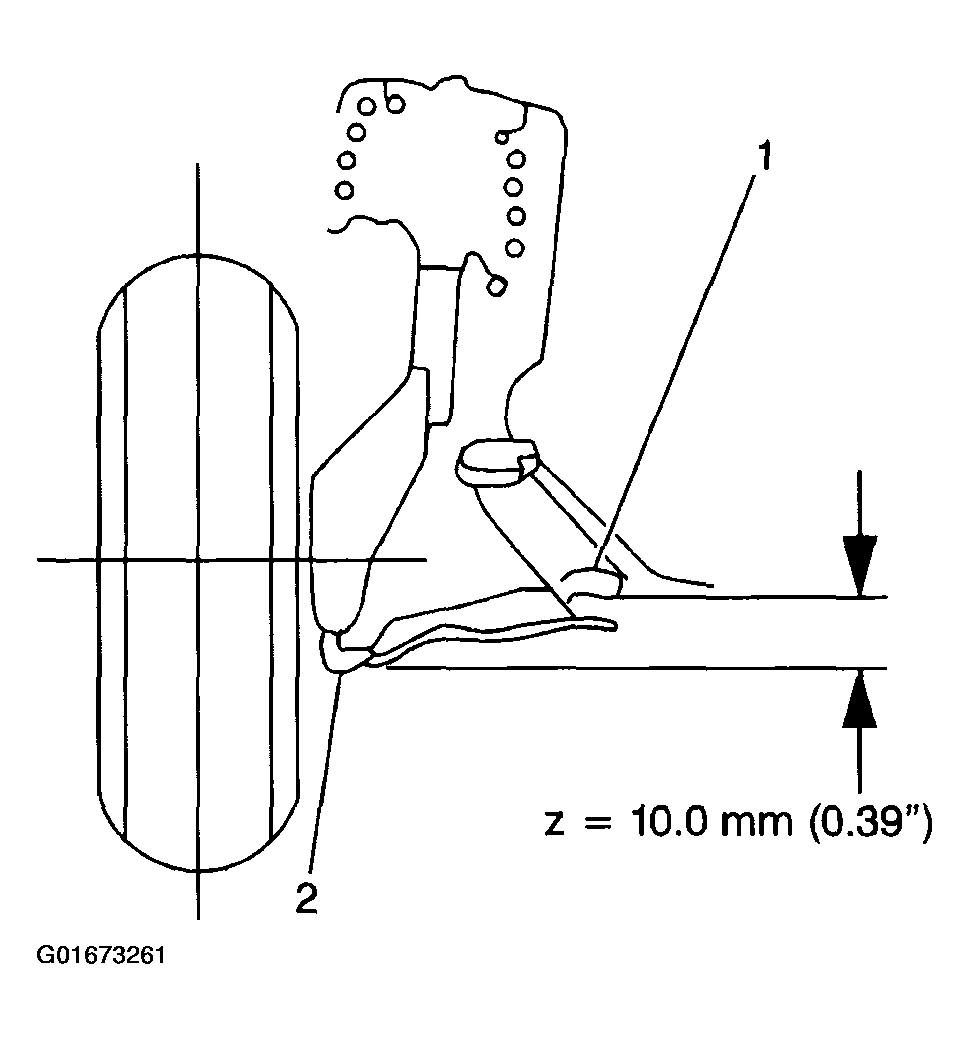

Fig 2: Measuring Z Height

Courtesy of GENERAL MOTORS CORP.

Fig 3: Measuring D Height

Courtesy of GENERAL MOTORS CORP.

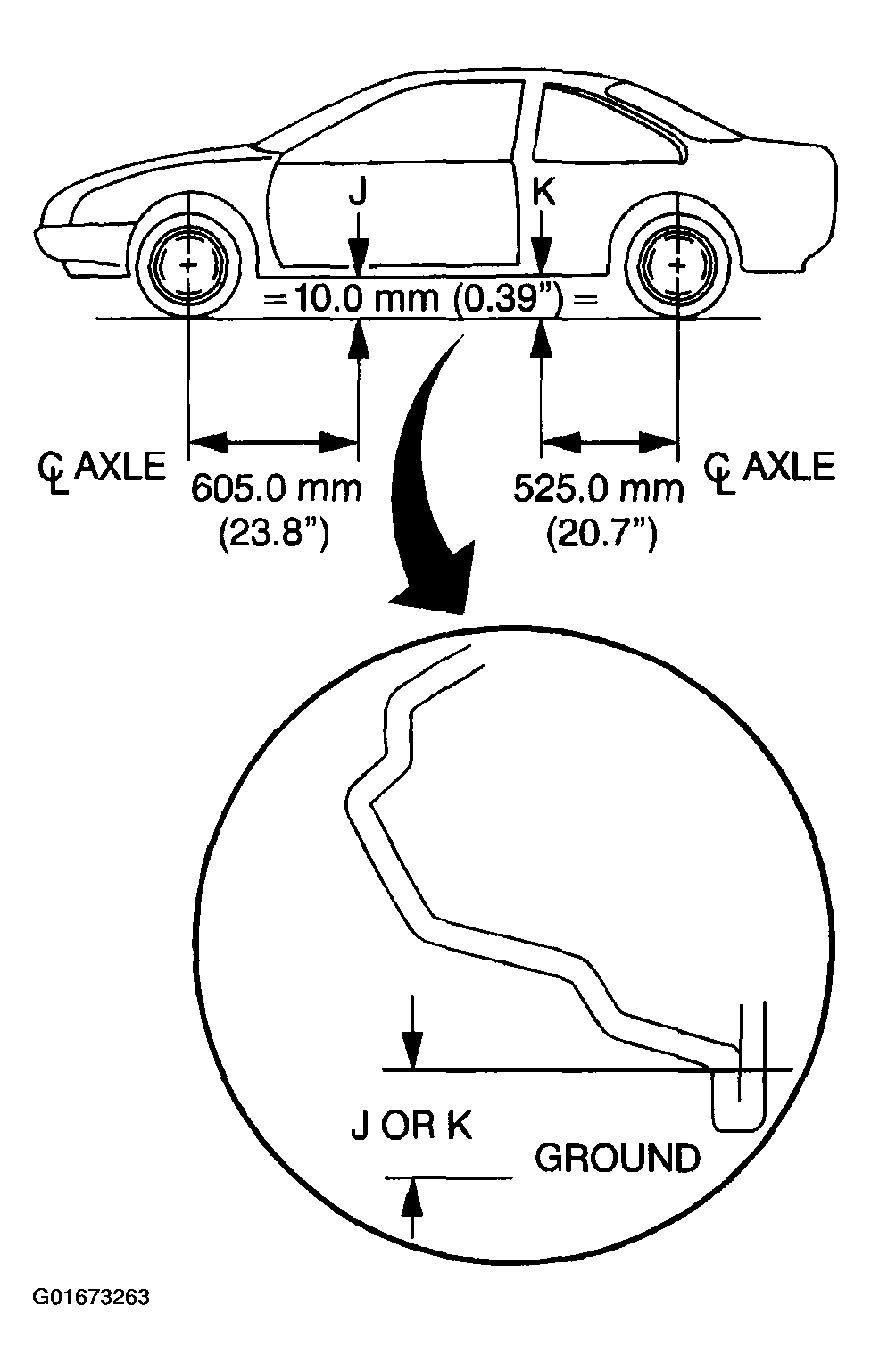

Fig 4: Measuring J or K Height

Courtesy of GENERAL MOTORS CORP.
