Fuel Tank Pressure Sensor: Removal
WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
The FTP sensor is located on top of fuel pump module cover. Remove fuel tank from vehicle. See FUEL TANK

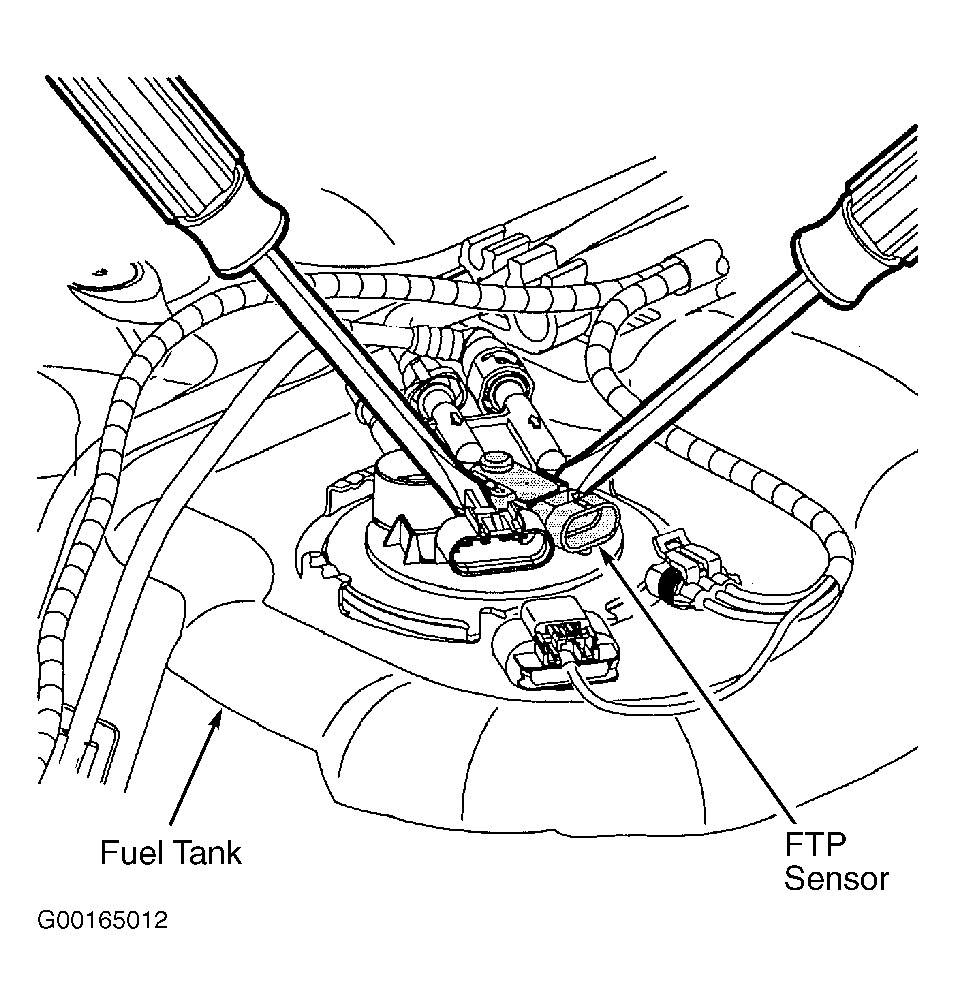

. Using 2 screwdrivers, gently pry under FTP sensor from 2 separate sides in order to equally lift sensor from fuel pump module. See Figure
. Remove FTP sensor.
