Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  2. Remove the center rear seat belt nuts (1).
  3. Remove the center rear seat belts from the vehicle.

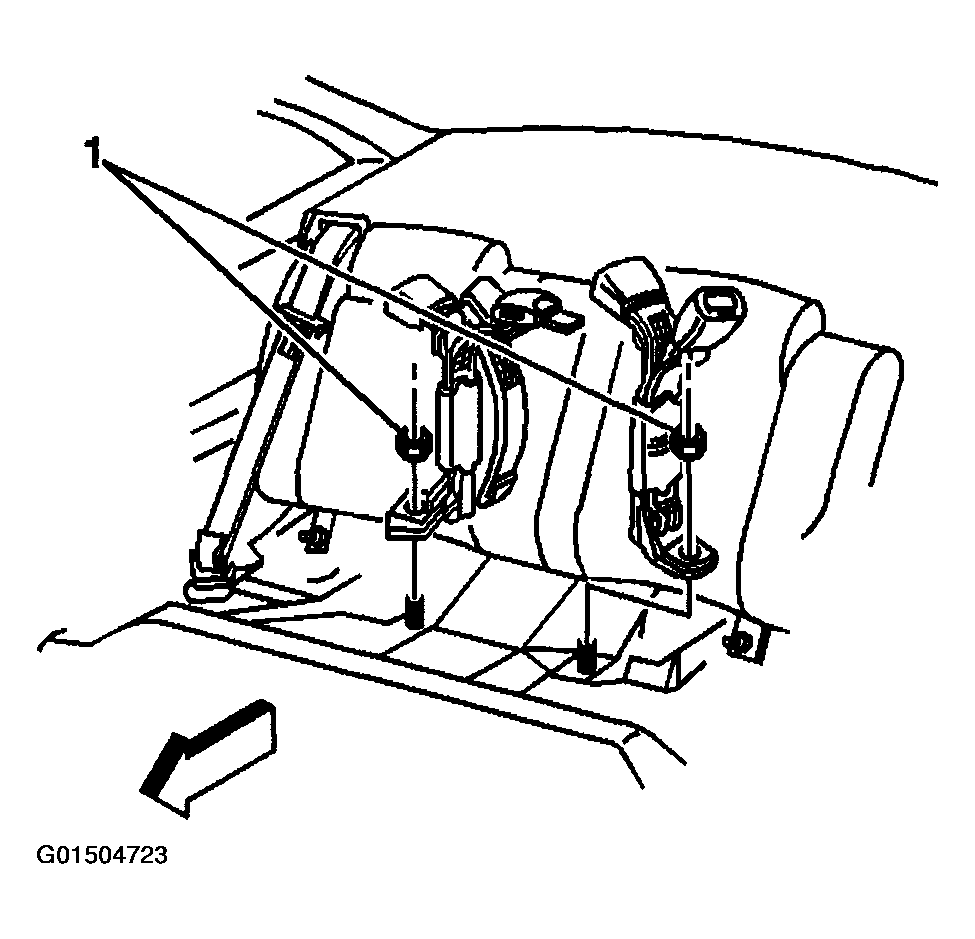

    Fig 1: Removing Center Rear Seat Belts From Vehicle
    G01504723Courtesy of GENERAL MOTORS CORP.
