Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle to the right front seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat belt buckle nut.

    Tighten

    Tighten the seat belt buckle nut to 42 N.m (31 lb ft).

  3. Position the right front seat to the original position.

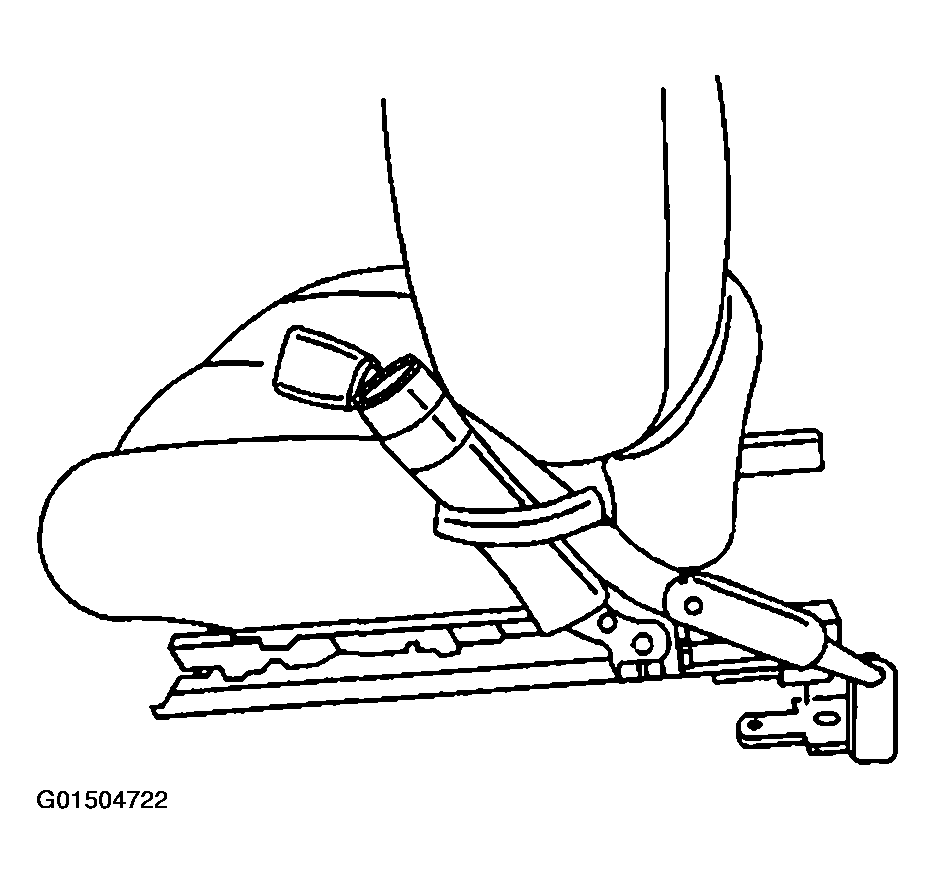

    Fig 1: Installing Procedure Seat Belt Buckle - Right Front
    G01504722Courtesy of GENERAL MOTORS CORP.
