Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure relief valve to the quarter panel.
  2. Press the pressure relief valve into the quarter panel until the snaps lock into place at both upper and lower locations.
  3. Install the rear compartment trim panel. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR  .
  4. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER in Bumpers.
  5. Close the rear compartment.

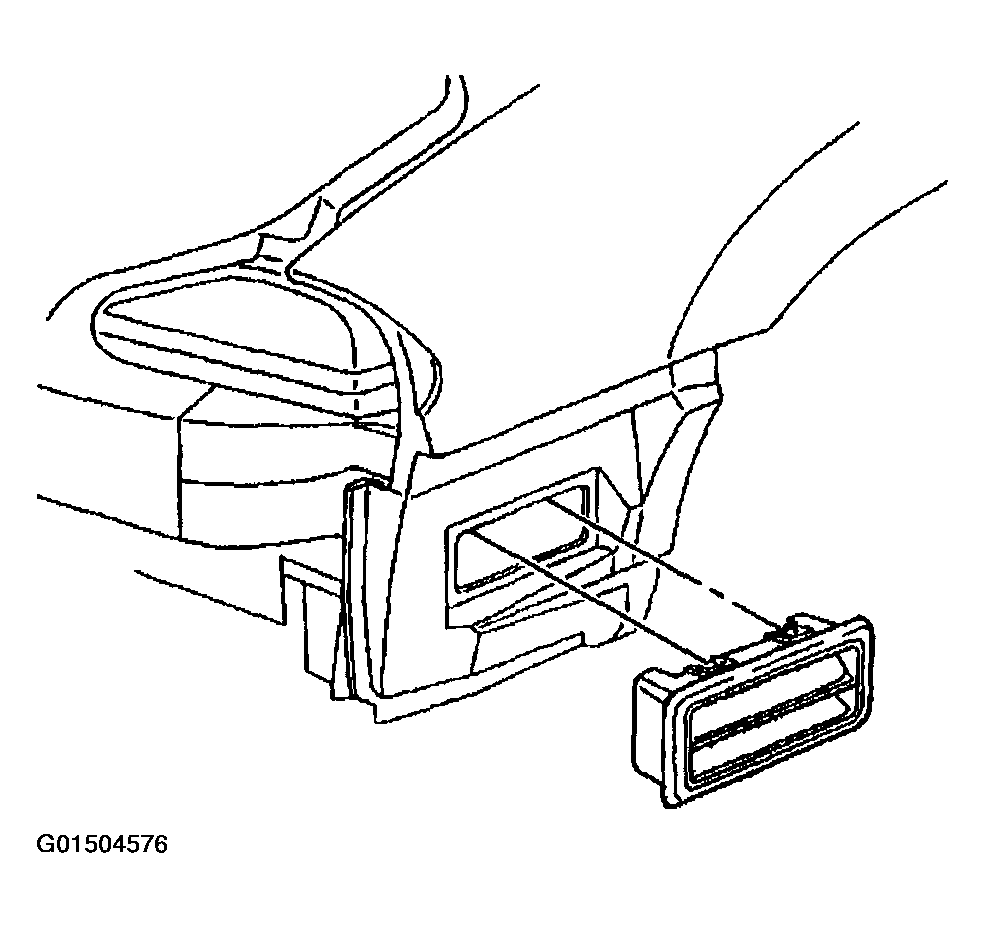

    Fig 1: Installing Pressure Relief Valve To Quarter Panel
    G01504576Courtesy of GENERAL MOTORS CORP.
