Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid lock striker to the rear compartment body panel.
  2. Install the bolts in the rear compartment lid lock striker under the rear bumper fascia.
  3. Tighten the bolts part way allowing for the adjustment of the rear compartment lid lock striker.
  4. Close the rear compartment lid in order to set the adjustment of the compartment lid.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Tighten the rear compartment lid lock striker bolts.

    Tighten

    Tighten the rear compartment lid lock striker bolts to 16 N.m (12 lb ft).

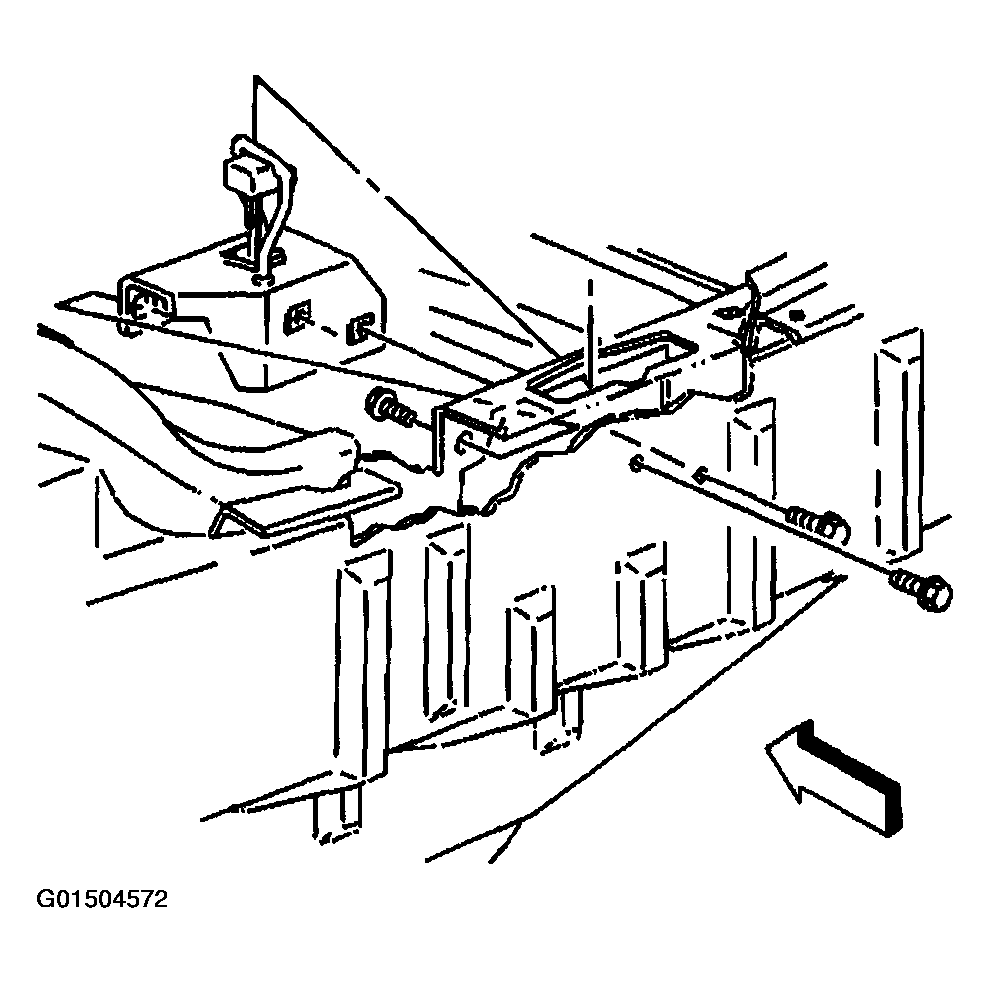

    Fig 1: Installing Rear Compartment Lid Lock Striker To Rear Compartment Body Panel
    G01504572Courtesy of GENERAL MOTORS CORP.
  6. Install the bolt to the rear compartment lid lock striker in the rear compartment.

    Important:  Due to sealer squeeze out on the rear compartment lid lock striker bolts, inspect the fastener tightening specifications at least 2 times.

    Tighten

    Tighten the rear compartment lid lock striker bolt to 16 N.m (12 lb ft).

  7. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER in Bumpers.
  8. Install the rear compartment trim panels. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR  .
  9. Close the rear compartment.
