Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Use a grease pencil to mark the location of the rear compartment lid latch.
  3. Disconnect the electrical connectors from the rear compartment lid latch.
  4. Remove the rear compartment lid latch bolts.
  5. Remove the rear compartment lid latch from the rear compartment lid.

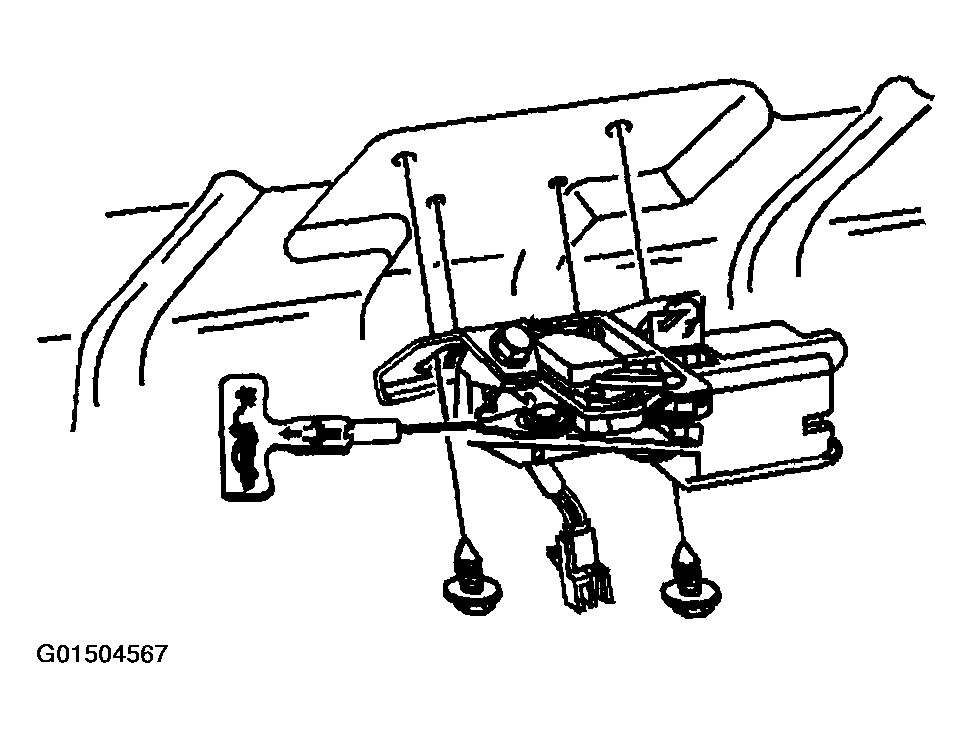

    Fig 1: Removing Rear Compartment Lid Latch From Rear Compartment Lid
    G01504567Courtesy of GENERAL MOTORS CORP.
