Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear compartment lid latch to the marks made on the rear compartment lid.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear compartment lid latch bolts.

    Tighten

    Tighten the rear compartment lid latch bolts to 9 N.m (80 lb in).

  3. Connect the electrical connectors to the rear compartment lid latch.
  4. Close the rear compartment.

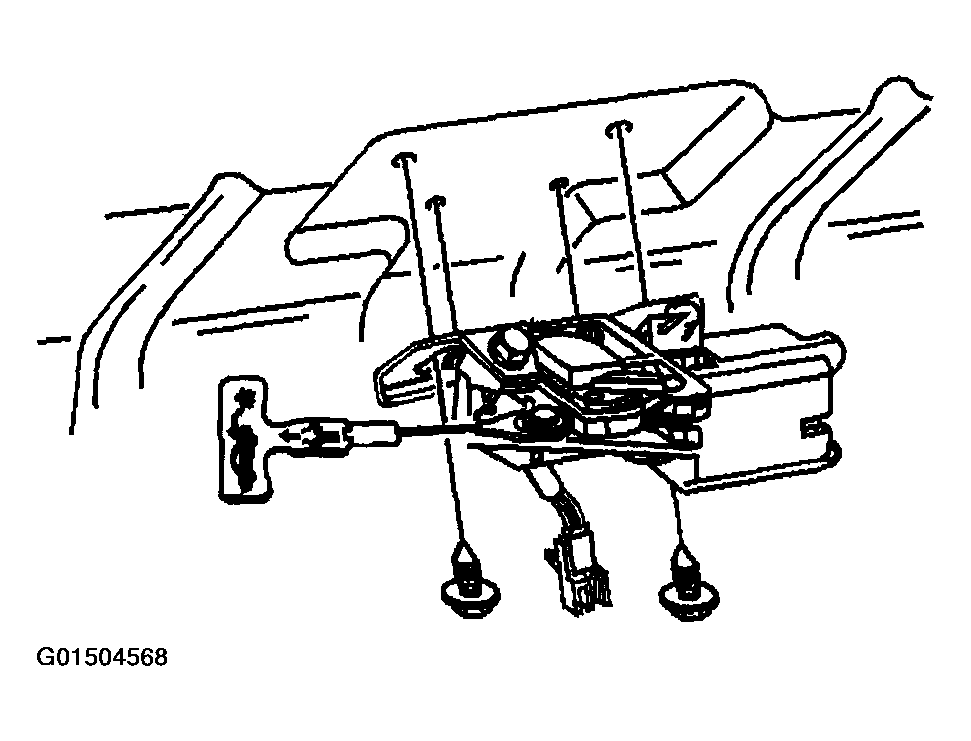

    Fig 1: Installing Rear Compartment Lid Latch To Rear Compartment Lid
    G01504568Courtesy of GENERAL MOTORS CORP.
