Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment lid. Refer to COMPARTMENT LID REPLACEMENT - REAR  .
  2. Remove the rear compartment lid struts. Refer to STRUT REPLACEMENT - REAR COMPARTMENT LID  .
  3. Use a grease pencil to mark the hinge to the quarter panel for the location at installation.
  4. Remove the bolts from hinge at the quarter panel.
  5. Remove the hinge.

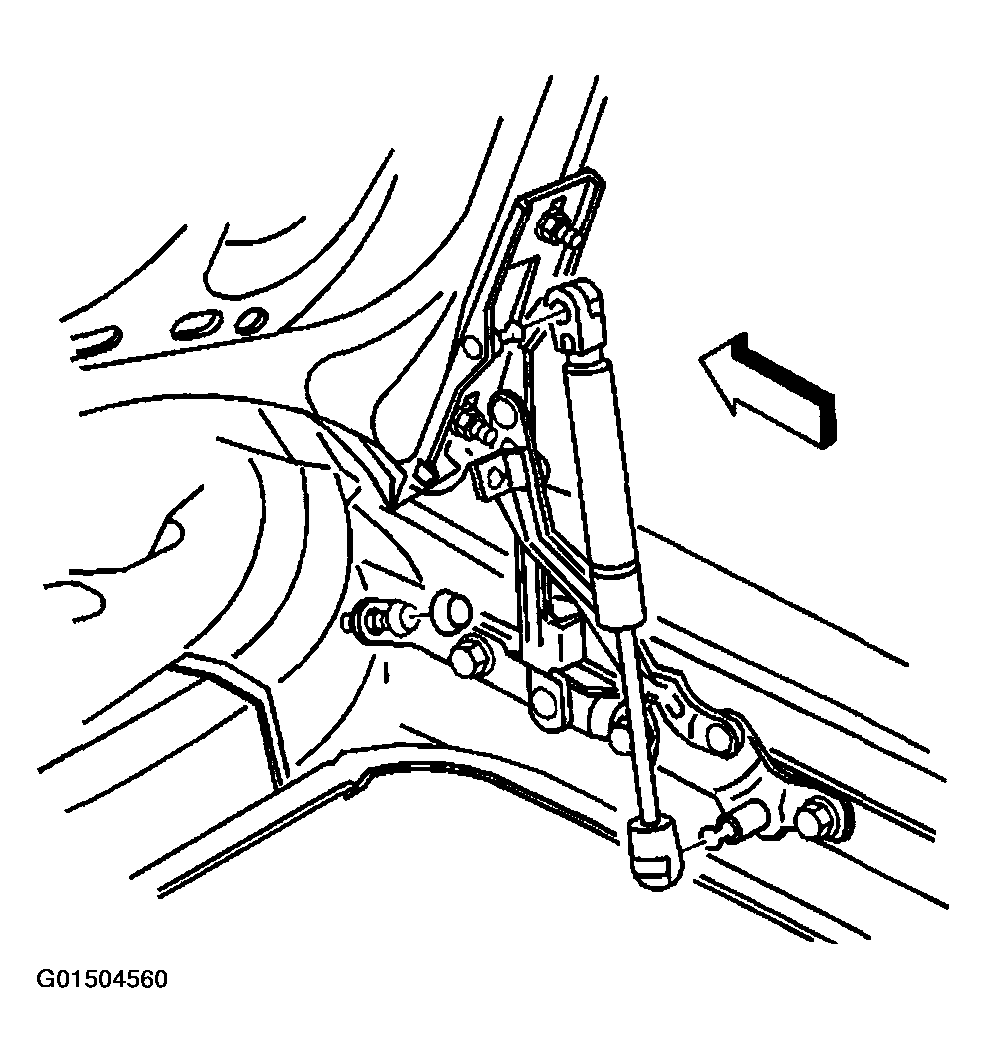

    Fig 1: Removing Rear Compartment Lid Hinge
    G01504560Courtesy of GENERAL MOTORS CORP.
