Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the upper guide loop attachment cover of the front seat belt.
  2. Remove the upper seat belt guide loop attachment nut.
  3. Pull the door weatherstrip from the pinchweld flange as required.
  4. Remove the upper trim panel from the center pillar using J 38778  .
  5. Remove the upper trim panel from the vehicle.

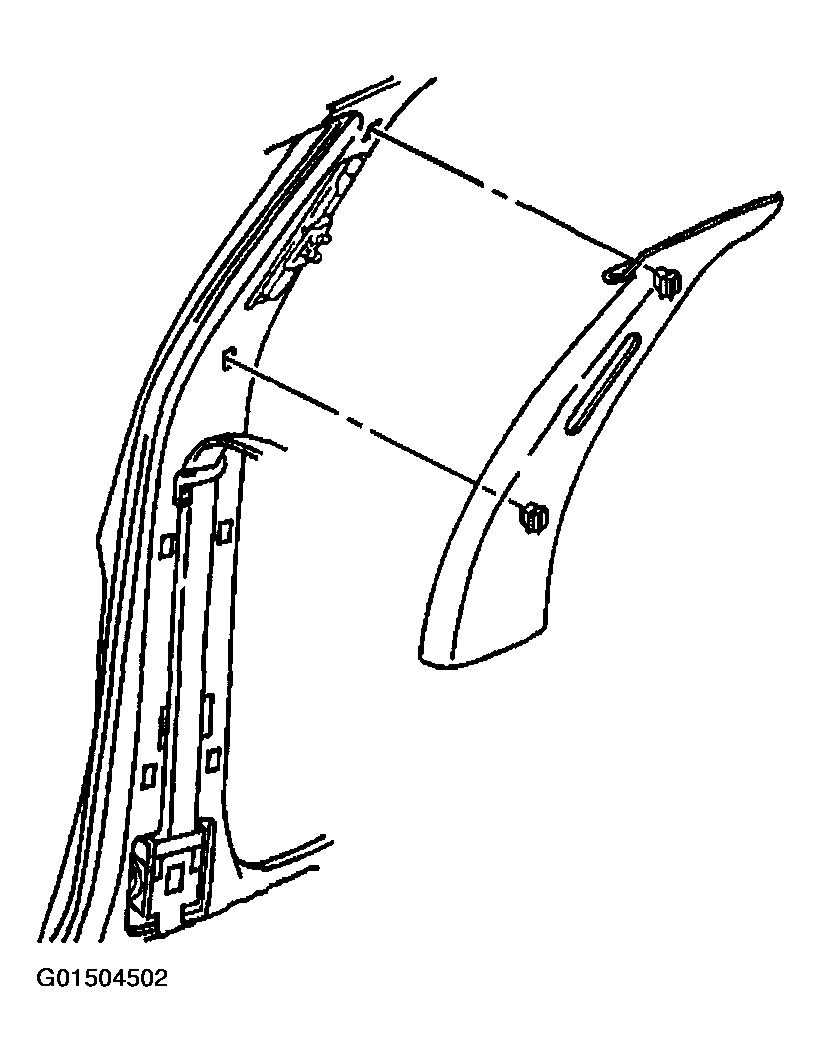

    Fig 1: Removing Upper Trim Panel From Center Pillar
    G01504502Courtesy of GENERAL MOTORS CORP.
