Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the upper trim panel to the center pillar.
  2. Press firmly on the upper trim panel until the retainers are fully seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the guide loop attachment nut.

    Tighten

    Tighten the guide loop attachment nut to 42 N.m (31 lb ft).

  4. Close the upper guide loop attachment cover of the front seat belt.
  5. Install the door weatherstrip to the pinchweld flange.

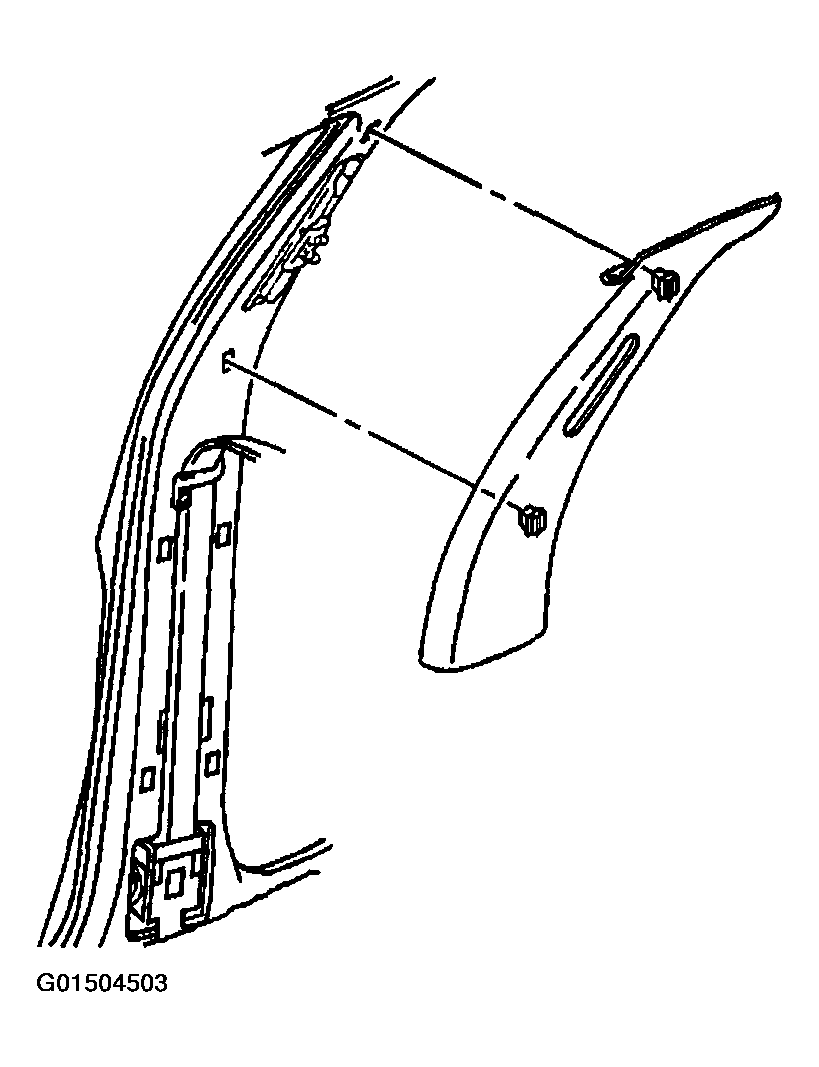

    Fig 1: Installing Upper Trim Panel To Center Pillar
    G01504503Courtesy of GENERAL MOTORS CORP.
