Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR in Seats.
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR (STATIONARY) or SEAT BACK REPLACEMENT -- REAR (FOLDING) in Seats.
  3. Remove the rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER (SEDAN)  .

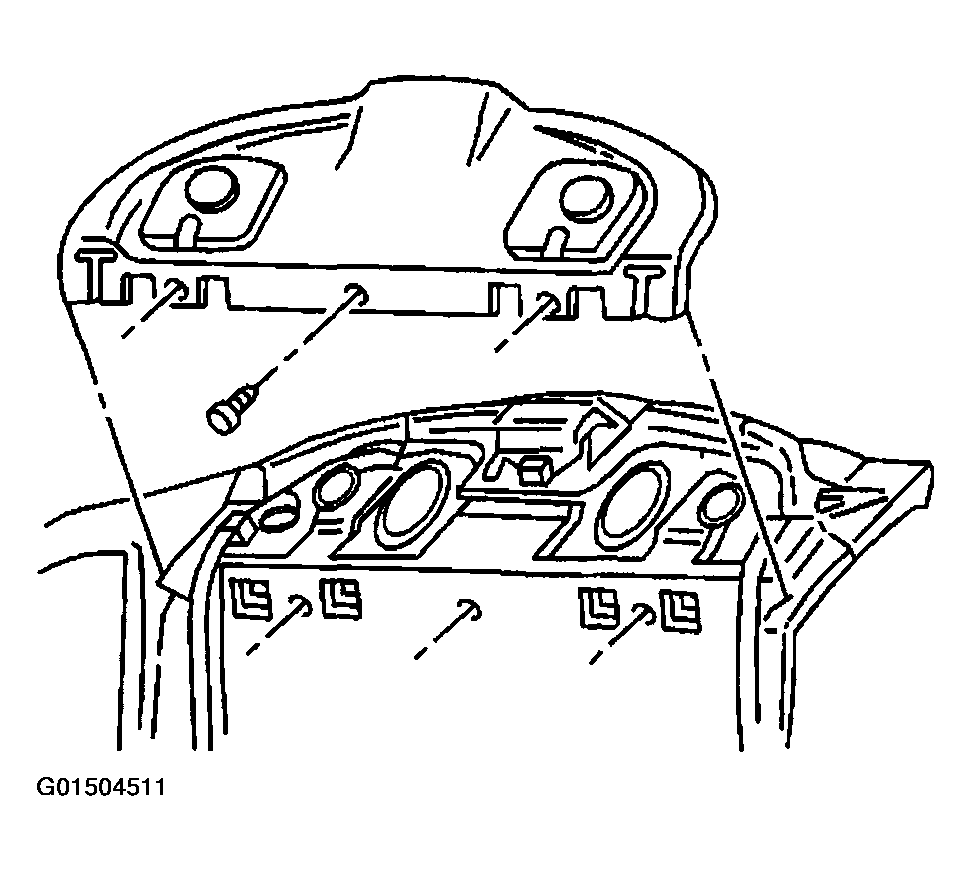

    Fig 1: Removing Rear Window Shelf Trim Panel
    G01504511Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN)  .
  5. Remove the rear seat belts from the T-slots in the rear window trim panel.
  6. Remove the push-in retainers from the rear window trim panel using J 38778  .
  7. Remove the rear shelf trim panel.
