Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide in the rear shelf trim panel. Make sure it goes under the High Mount Stop Lamp housing.
  2. Install the safety belts into the T-slots in the rear window trim panel.
  3. Install the push-in retainers to the rear window trim panel.
  4. Install the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN)  .
  5. Install the rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER (SEDAN)  .
  6. Install the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR (STATIONARY) or SEAT BACK REPLACEMENT -- REAR (FOLDING) in Seats.
  7. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR in Seats.

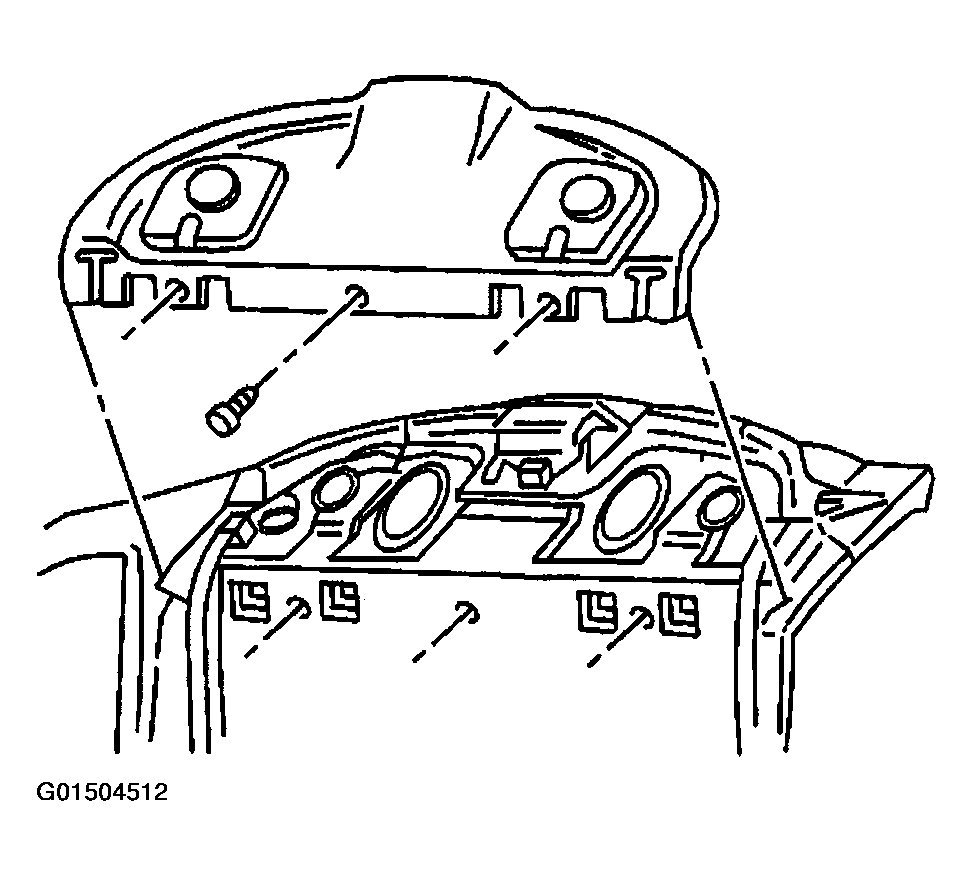

    Fig 1: Installing Rear Window Shelf Trim Panel
    G01504512Courtesy of GENERAL MOTORS CORP.
