Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front carpet retainer. Refer to CARPET RETAINER REPLACEMENT - FRONT  .
  2. Pull the door weatherstrip from the pinchweld flange as required.
  3. Remove the screws holding the carper retaining leg of the panel.

    Remove the lower trim panel from the center pillar using J 38778  .

  4. Remove the seat belt from the slot in the lower trim panel.
  5. Remove the lower trim panel from the vehicle.

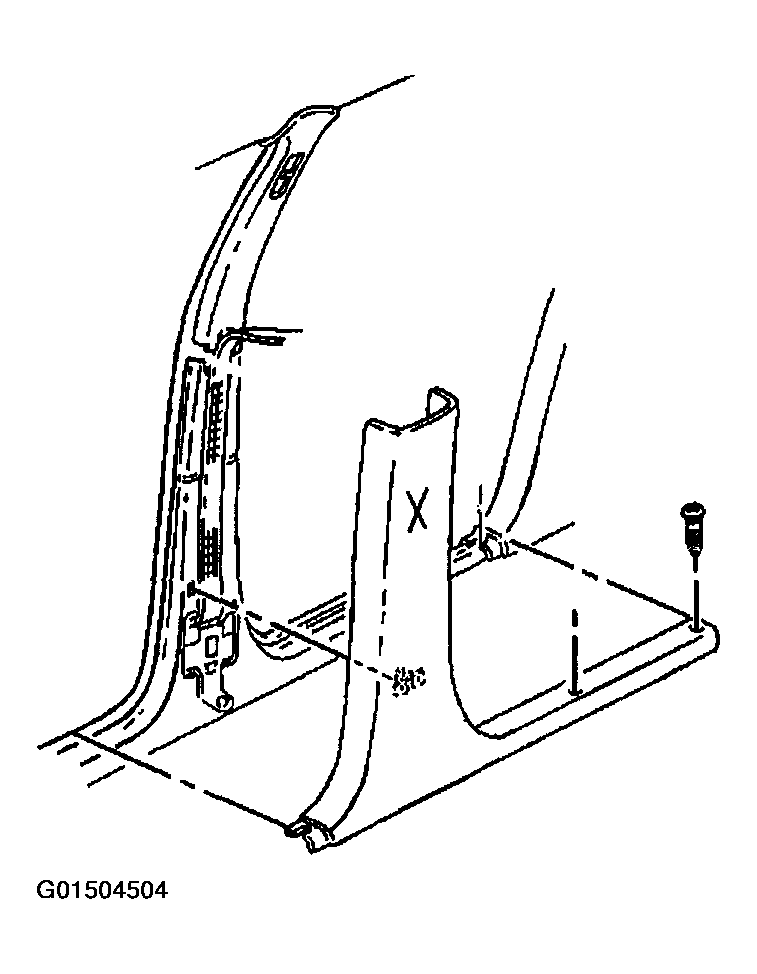

    Fig 1: Removing Lower Trim Panel From Center Pillar
    G01504504Courtesy of GENERAL MOTORS CORP.
