Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt to the slot in the lower trim panel.
  2. Align the lower trim panel to the center pillar.
  3. Press firmly on the lower trim panel until fully seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws to the carpet retaining leg of the panel.

    Tighten

    Tighten the carpet retainer screws to 2 N.m (18 lb in).

  5. Install the door weatherstrip to the pinchweld flange.
  6. Install the front carpet retainer. Refer to CARPET RETAINER REPLACEMENT - FRONT  .

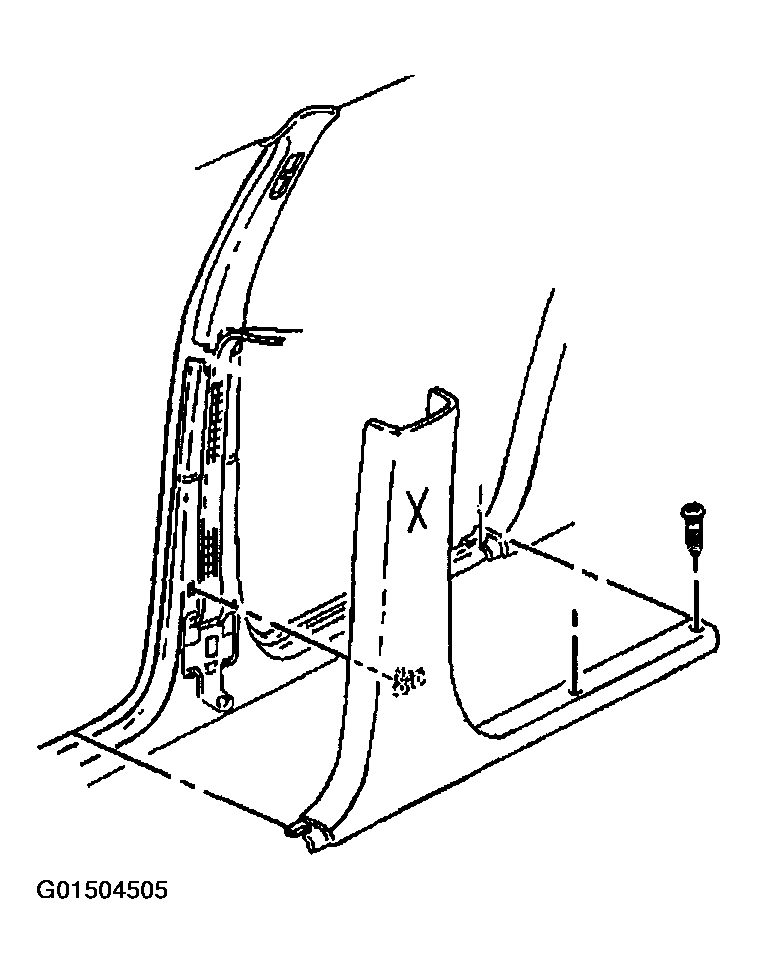

    Fig 1: Installing Lower Trim Panel To Center Pillar
    G01504505Courtesy of GENERAL MOTORS CORP.
