Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR in Seats.
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR (STATIONARY) or SEAT BACK FRAME REPLACEMENT -- REAR (FOLDING) in Seats.
  3. Remove the quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER (SEDAN)  .
  4. If equipped, remove the push-in retainers (1) from the rear seat sound barrier (2) using J 38778.
  5. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF  .
  6. If equipped, remove the jute overlay from around the speakers.
  7. Remove the rear seat sound barrier from the vehicle.

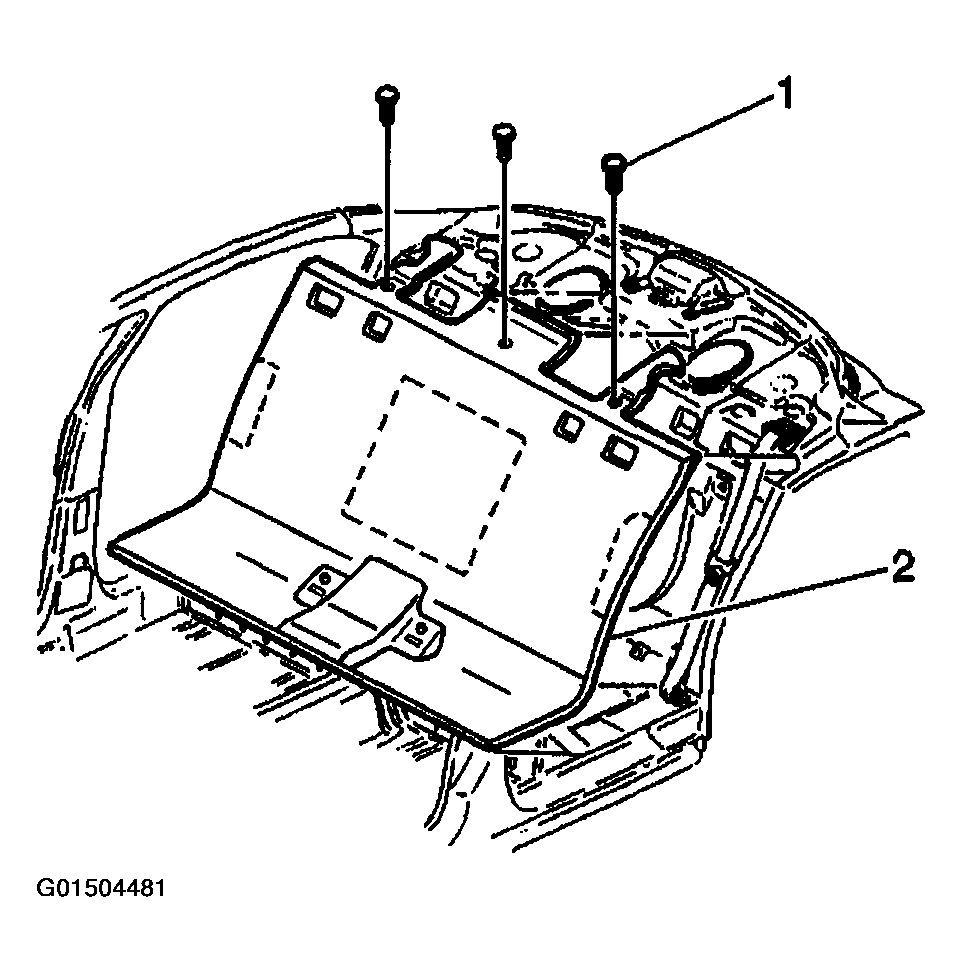

    Fig 1: Removing Rear Seat Sound Barrier From Vehicle
    G01504481Courtesy of GENERAL MOTORS CORP.
