Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Beginning at one end, slowly pull the self-adhesive door sill plate from the rocker.
  3. Completely pull the door sill plate from the rocker.

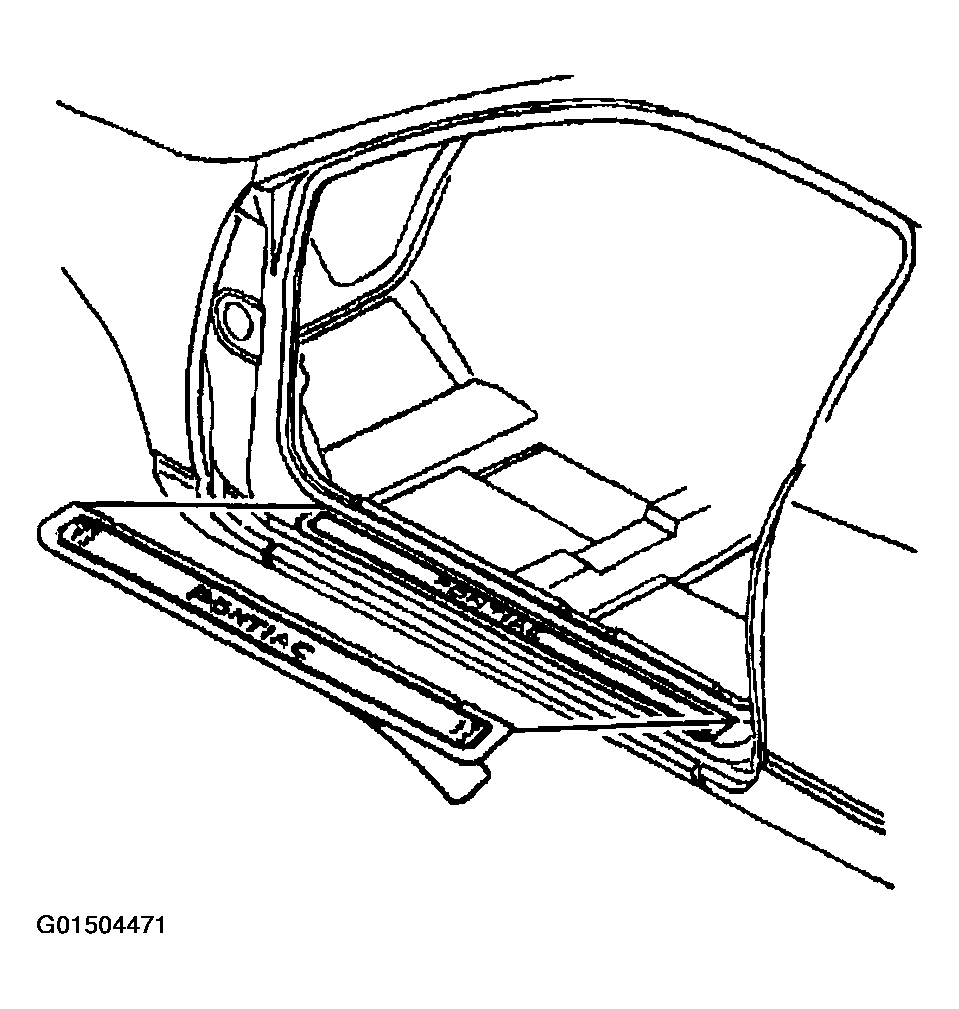

    Fig 1: Removing Door Sill Plate From Rocker
    G01504471Courtesy of GENERAL MOTORS CORP.
