Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw located by the windshield.
  2. Insert a flat-bladed tool to the rear of the off/on switches and detach the console lamp assembly.
  3. Disconnect the lamp electric connector.
  4. Open the storage compartments.
  5. Remove the overhead console screws.
  6. Remove the overhead console housing.
  7. Remove the backing plate.

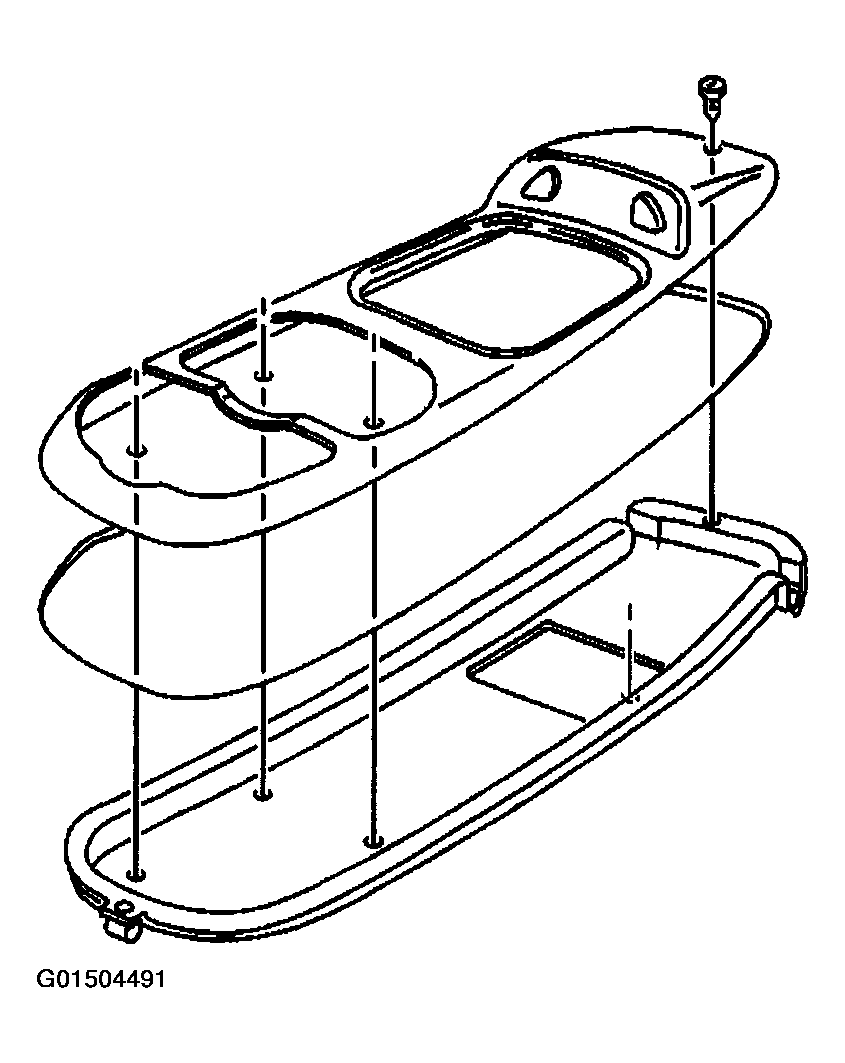

    Fig 1: Removing Overhead Console Housing
    G01504491Courtesy of GENERAL MOTORS CORP.
