Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the overhead console in the vehicle
  2. Connect the electrical connector to the sunroof switch (1) and to the garage door transmitter.
  3. Position the front tabs in the sunroof bezel.
  4. Press the console up to secure the rear clips.

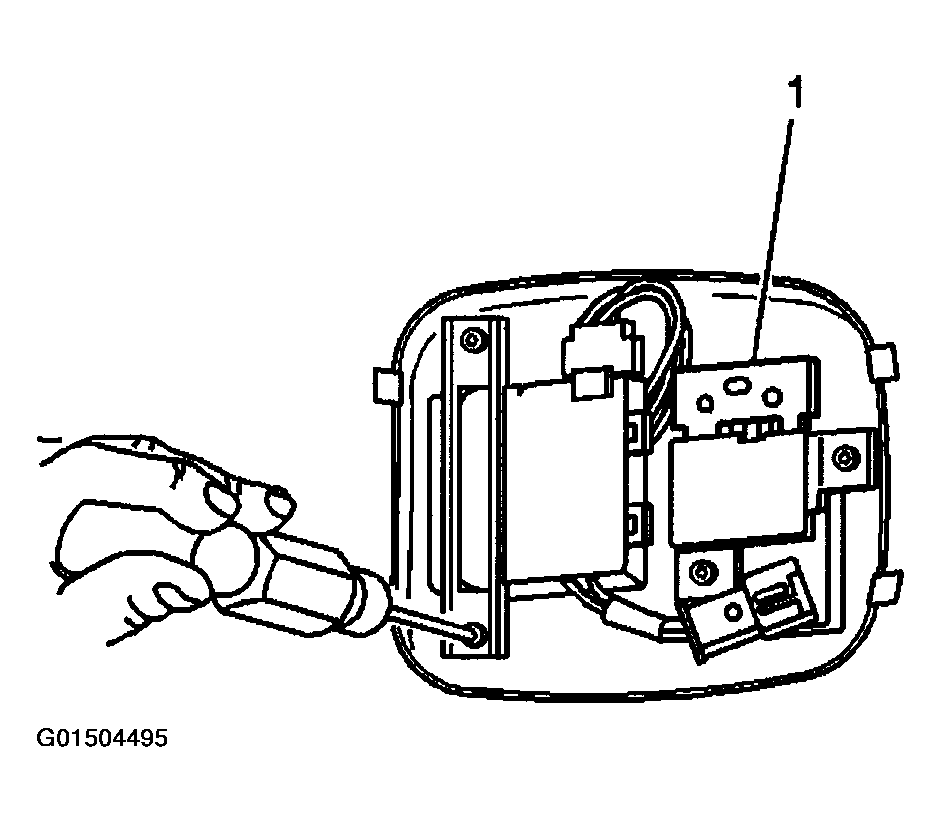

    Fig 1: Identifying Sunroof Switch
    G01504495Courtesy of GENERAL MOTORS CORP.
