Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the carpet retainer to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the carpet retainer.

    Tighten

    Tighten the carpet retainer screws to 2 N.m (18 lb in).

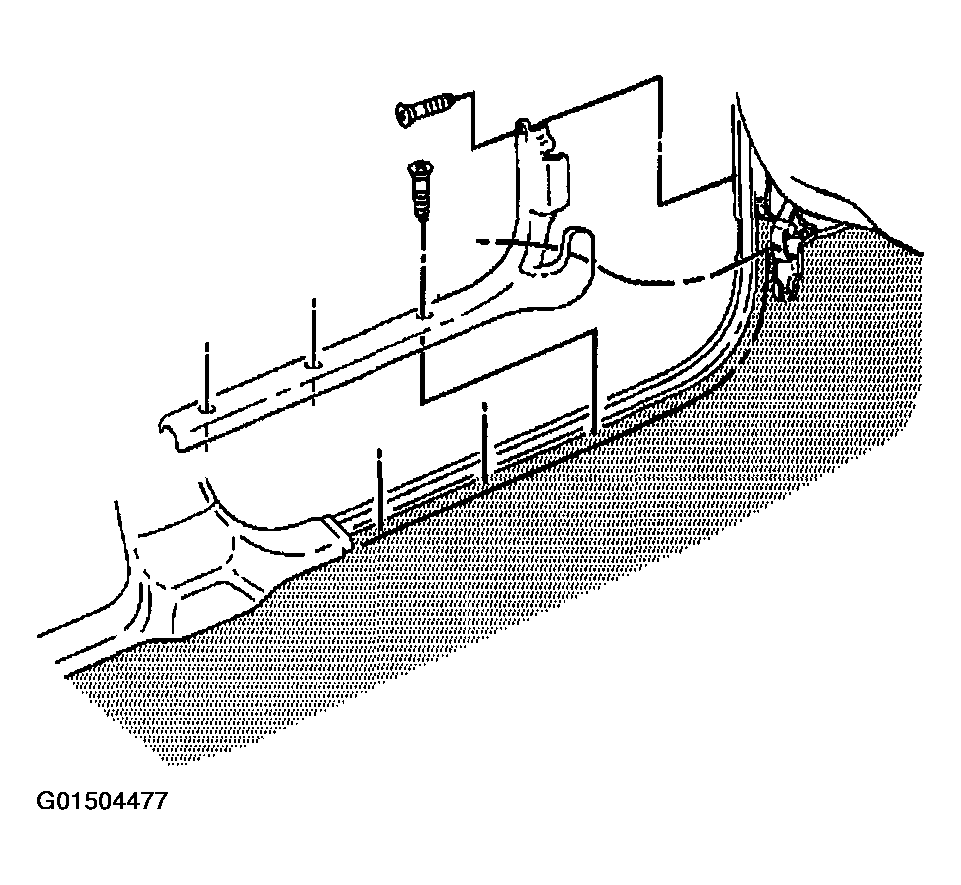

    Fig 1: Installing Front Carpet Retainer To Vehicle
    G01504477Courtesy of GENERAL MOTORS CORP.
