Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. Refer to SEAT REPLACEMENT -- FRONT BUCKET in Seats.
  2. Remove the front floor console, if equipped. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR in Instrument Panel, Gages and Console.
  3. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR in Seats.
  4. Remove the carpet retainers. Refer to CARPET RETAINER REPLACEMENT - FRONT  .
  5. Remove the right and left closeout/insulator panels. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT and CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in Instrument Panel, Gages and Console.
  6. Remove the lower trim panel from the center pillar. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR  .
  7. Remove the carpet from the vehicle.

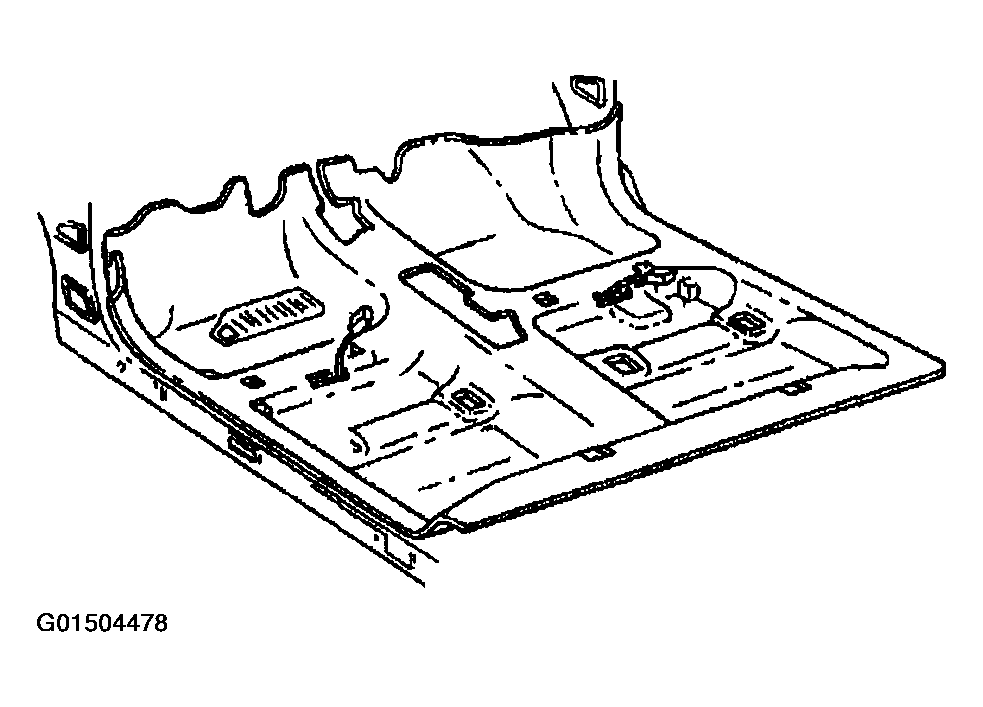

    Fig 1: Removing Front Carpet From Vehicle
    G01504478Courtesy of GENERAL MOTORS CORP.
