Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat trim panel to the front seat.
  2. Connect the electrical connectors, if equipped.
  3. Install the front seat trim panel to the front seat cushion frame, using new clips.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws to the front seat trim panel.

    Tighten

    Tighten the front seat trim panel screws to 3 N.m (27 lb in).

  5. Install the retainer to the base of the recliner handle.
  6. Install the recliner handle.

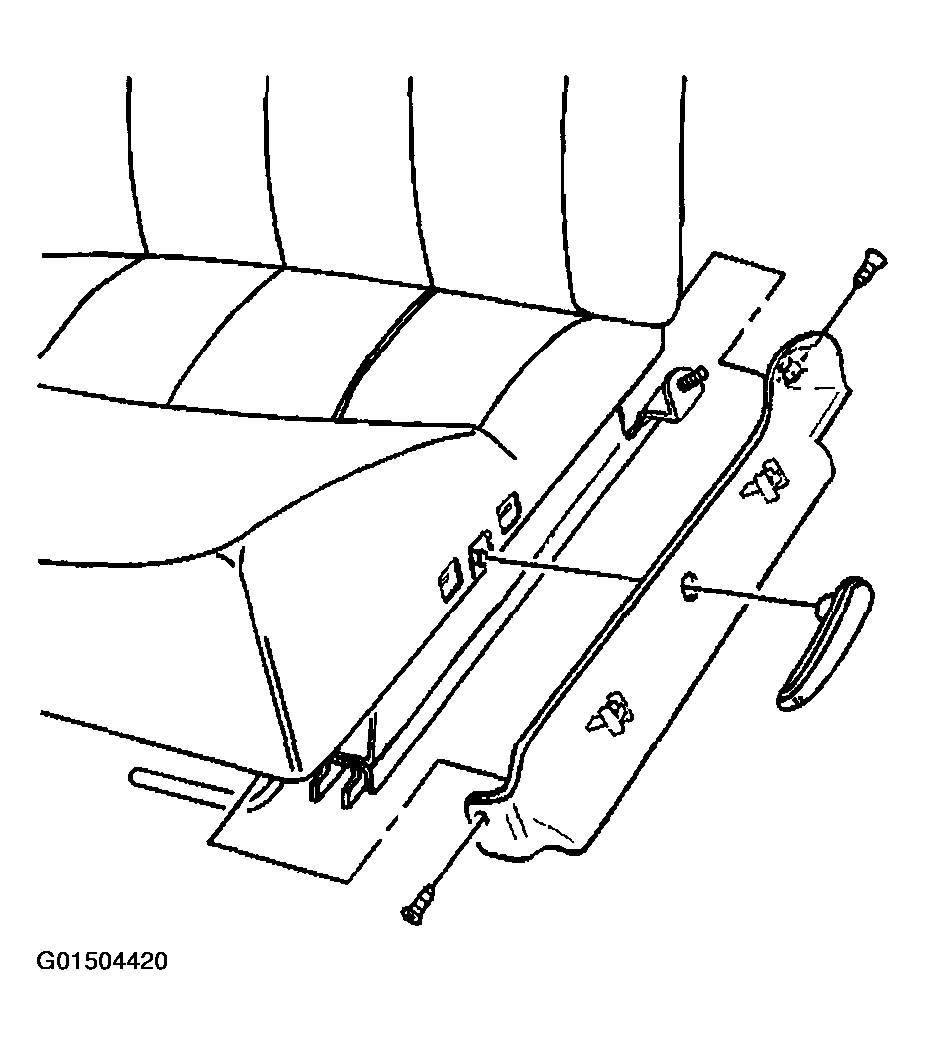

    Fig 1: Installing Front Seat Trim Panel To Front Seat
    G01504420Courtesy of GENERAL MOTORS CORP.
