Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outer trim panel from the front seat cushion. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  2. Remove the screws from the seat switch to the trim panel.
    Fig 1: Removing Screws From Seat Switch To Trim Panel
    G01504401Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector (2) from the power front seat switch.
  4. Remove the power front seat switch.

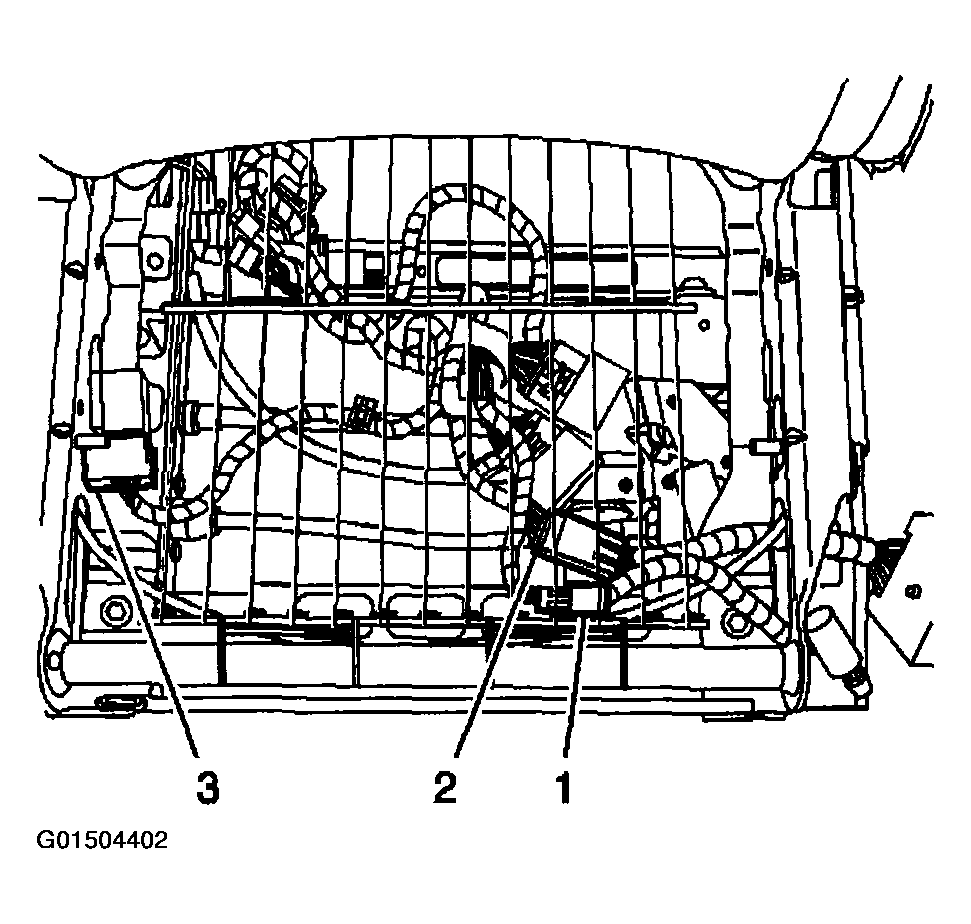

    Fig 2: Disconnecting Electrical Connector From Power Front Seat Switch
    G01504402Courtesy of GENERAL MOTORS CORP.
