Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the tabs on the rear cushion retainers.
  2. Remove the rear seat cushion by lifting the rear seat cushion up and pulling the cushion outward from the retainer.

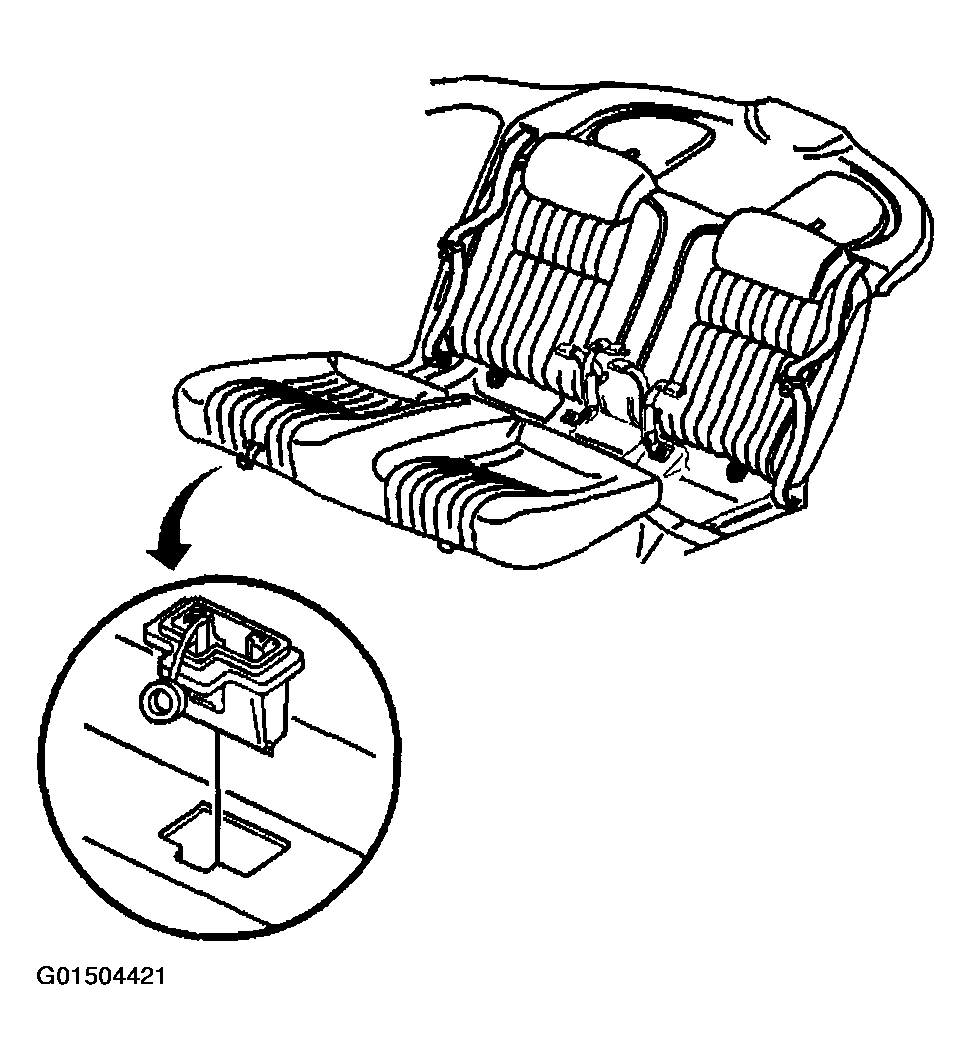

    Fig 1: Removing Rear Cushion From Vehicle
    G01504421Courtesy of GENERAL MOTORS CORP.
