Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Important: Replace the rear cushion retainers whenever the rear seat cushion is removed. This action ensures that the seat cushion is correctly retained to the floor.

Replace the retainers.

Position the rear seat cushion in the vehicle.
Press down on the rear seat cushion front to lock the seat cushion into the retainers.
Ensure the retainer tabs are locked into place.

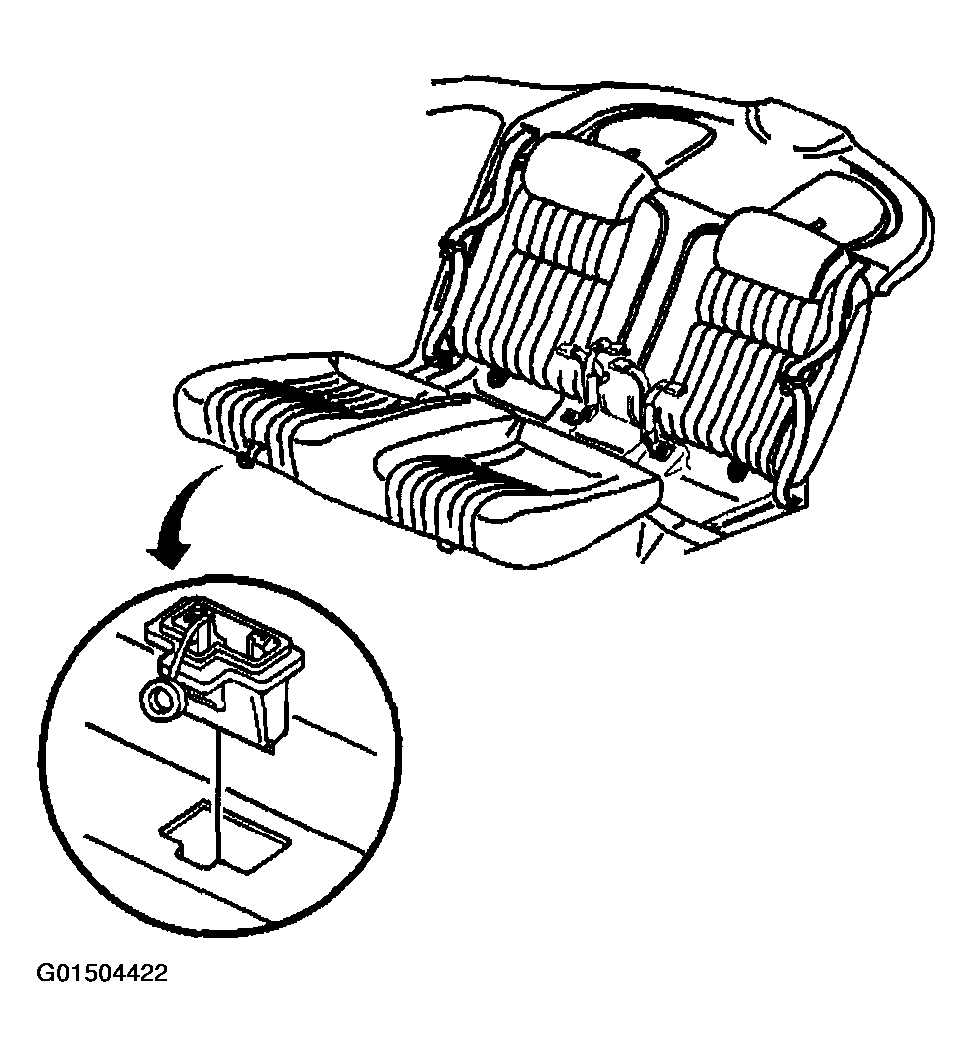

Fig 1: Installing Rear Cushion In Vehicle
Courtesy of GENERAL MOTORS CORP.
