Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the front seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  3. Remove the front seat cushion cover. Refer to SEAT CUSHION COVER REPLACEMENT - FRONT  .
  4. If equipped, disconnect the electrical connector for the seat heater and pull the electrical wire through the cushion pad.
  5. Remove the front seat cushion pad from the seat cushion frame.

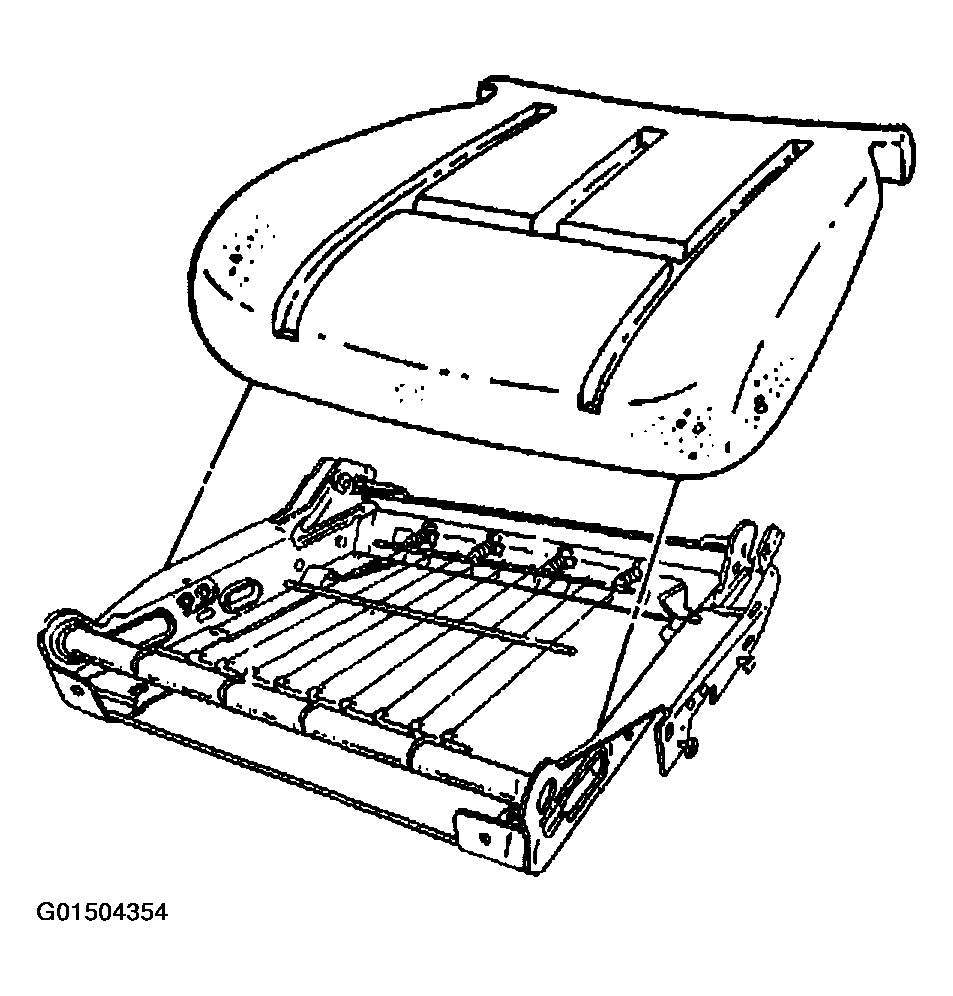

    Fig 1: Removing Front Seat Cushion Pad From Seat Cushion Frame
    G01504354Courtesy of GENERAL MOTORS CORP.
