Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat cushion pad to the front seat cushion frame.
  2. If equipped, install the seat heater wire.
  3. Install the front seat cushion cover. Refer to SEAT CUSHION COVER REPLACEMENT - FRONT  .
  4. Install the front seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  5. Install the front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

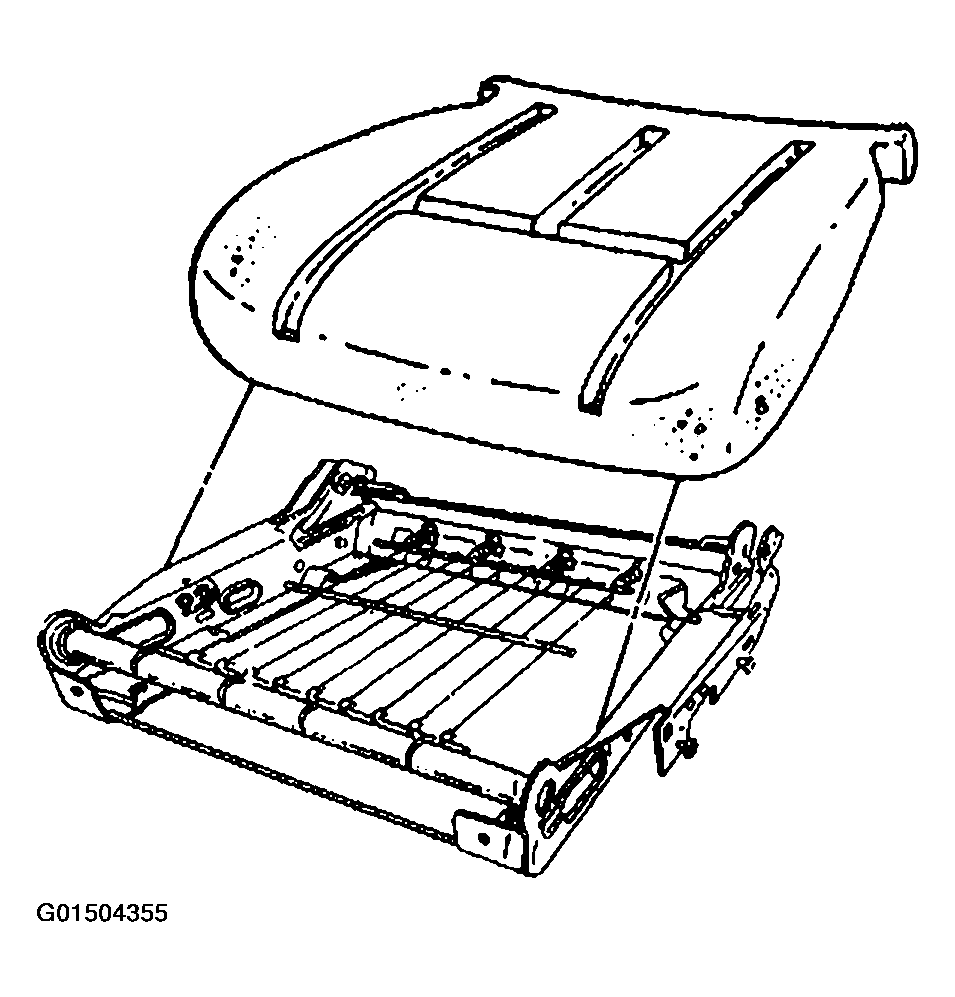

    Fig 1: Installing Front Seat Cushion Pad To Front Seat Cushion Frame
    G01504355Courtesy of GENERAL MOTORS CORP.
