Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion (1). Refer to SEAT CUSHION REPLACEMENT - REAR  .
  2. Remove the trim retainer rings (3) (hog rings) from the cover (2).

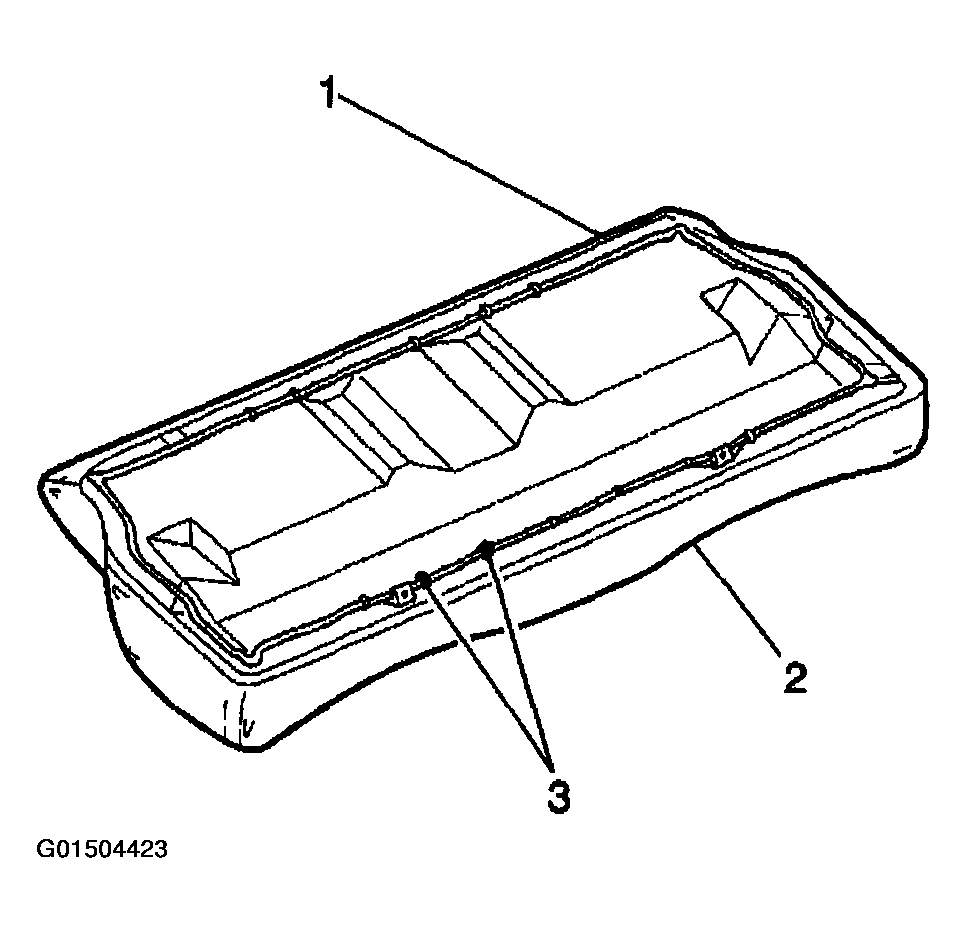

    Fig 1: Removing Trim Retainer Rings (Hog Rings) From Cover
    G01504423Courtesy of GENERAL MOTORS CORP.

    Important:  The trim cover is Windsor bonded (glued) to the cushion pad. If separation damages the trim or the pad, both the trim and the seat pad must be replaced.

  3. In order to expose the bonded area, roll the trim cover away from the foam pad. Begin at the rear edge of the trim cover.
  4. Fold the glue strip back with the trim cover. Hold the trim cover with one hand.
  5. Press down with the other hand on the foam at the edge of the bonded area separating the foam from the cover.
  6. Gently pull back on the trim cover as the foam pad and the trim cover separates.
  7. Remove the rear seat trim cover from the pad.

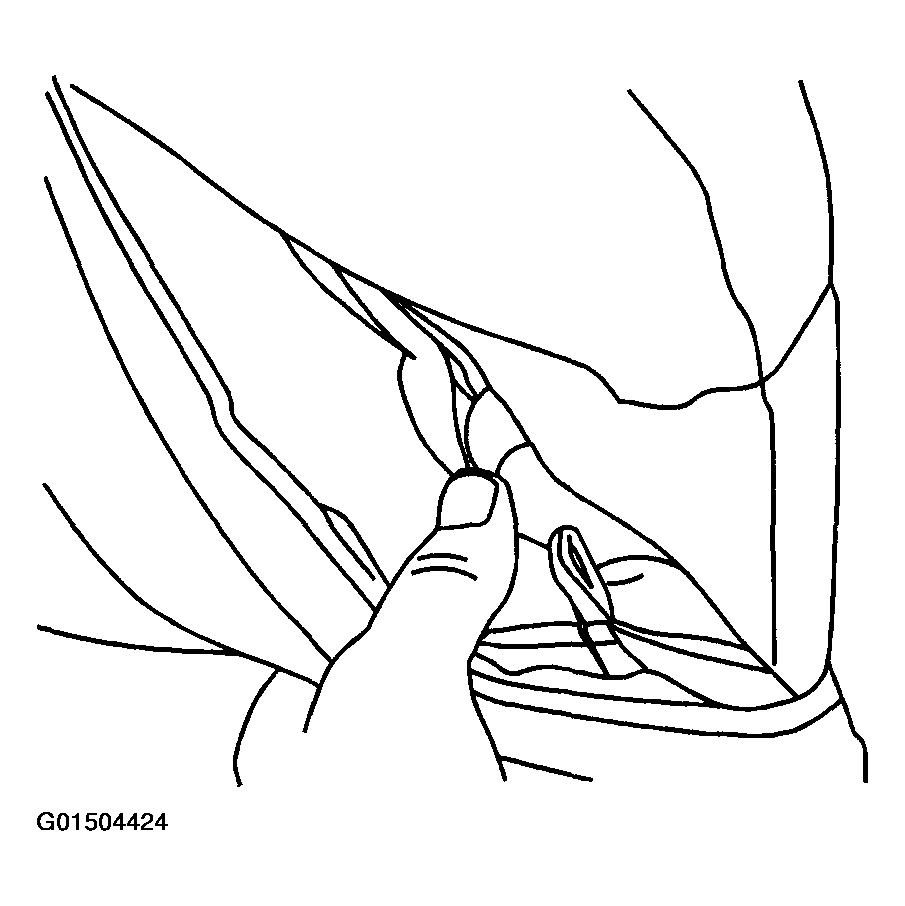

    Fig 2: Removing Rear Seat Trim Cover From Pad
    G01504424Courtesy of GENERAL MOTORS CORP.
