Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the front seat back. Refer to SEAT BACK REPLACEMENT - FRONT  .
  3. Remove the trim retainer rings.
  4. Rear under the seat cover and disengage the hook and loop retainers from the seat pad.
  5. If heated seat, disconnect the electrical connector for the seat heater. Pull the connector through the seat pad.

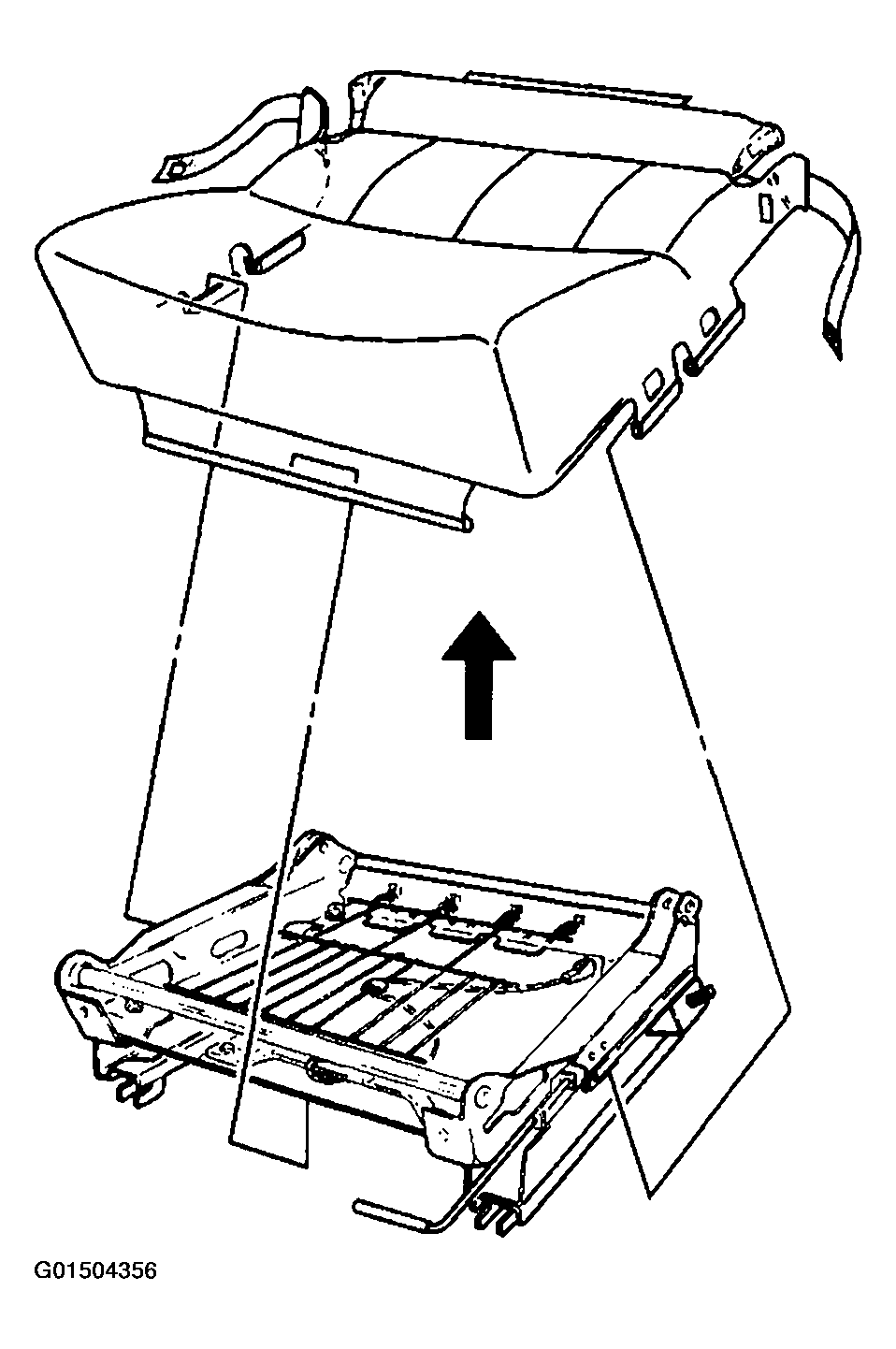

    Fig 1: Removing Front Seat
    G01504356Courtesy of GENERAL MOTORS CORP.
  6. Remove the front seat cushion cover.

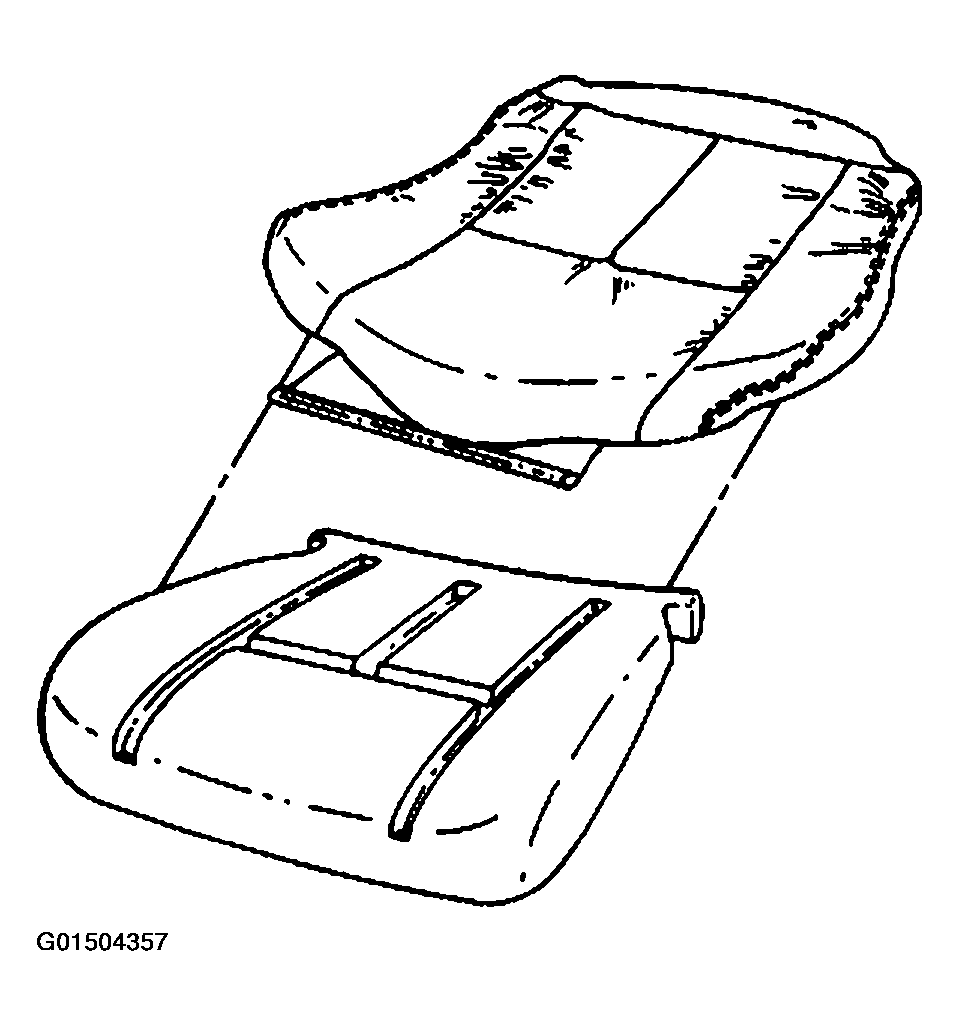

    Fig 2: Removing Front Seat Cushion Cover
    G01504357Courtesy of GENERAL MOTORS CORP.
