Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seat cushion cover.
  2. If heated seat, route the electrical connector through the seat pad. Connect the electrical connector for the seat heater.
  3. Engage the hook and loop retainers.

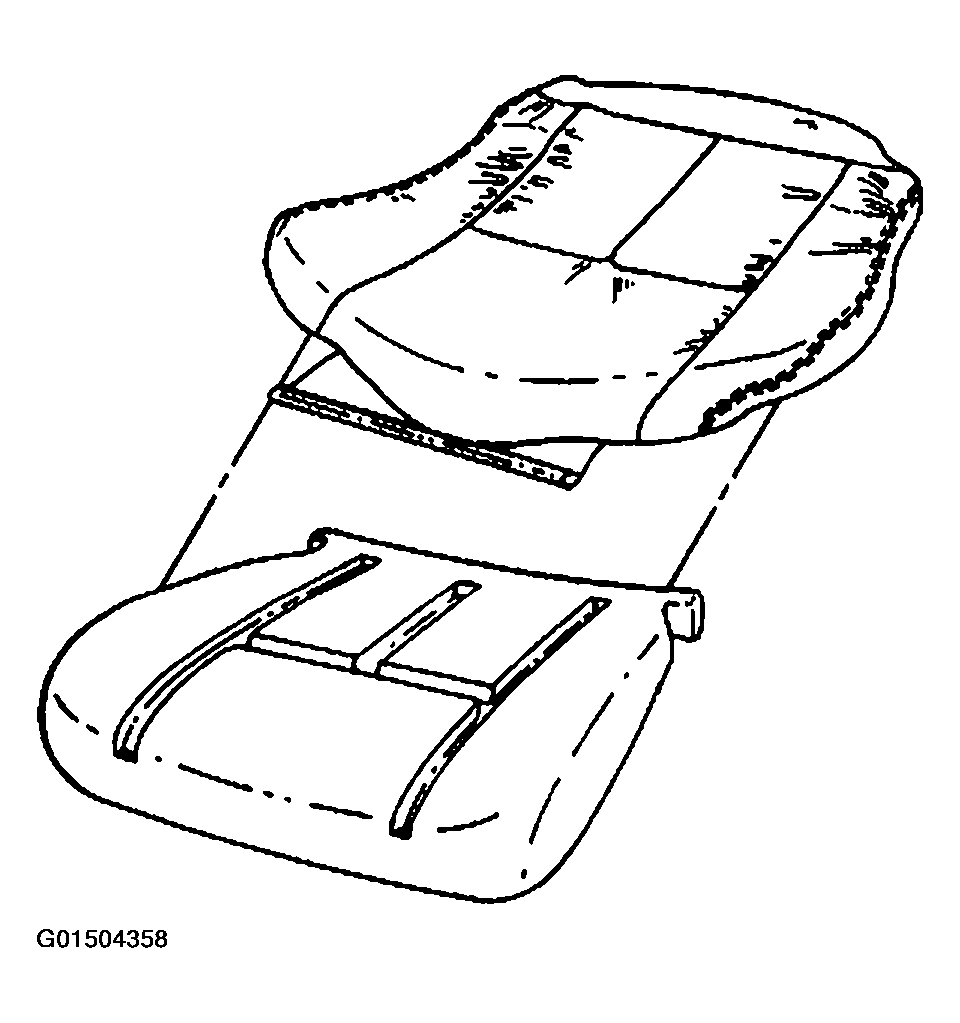

    Fig 1: Installing Front Seat Cushion Cover
    G01504358Courtesy of GENERAL MOTORS CORP.
  4. Install the trim retainer rings.
  5. Install the front seat back. Refer to SEAT BACK REPLACEMENT - FRONT  .
  6. Install the front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

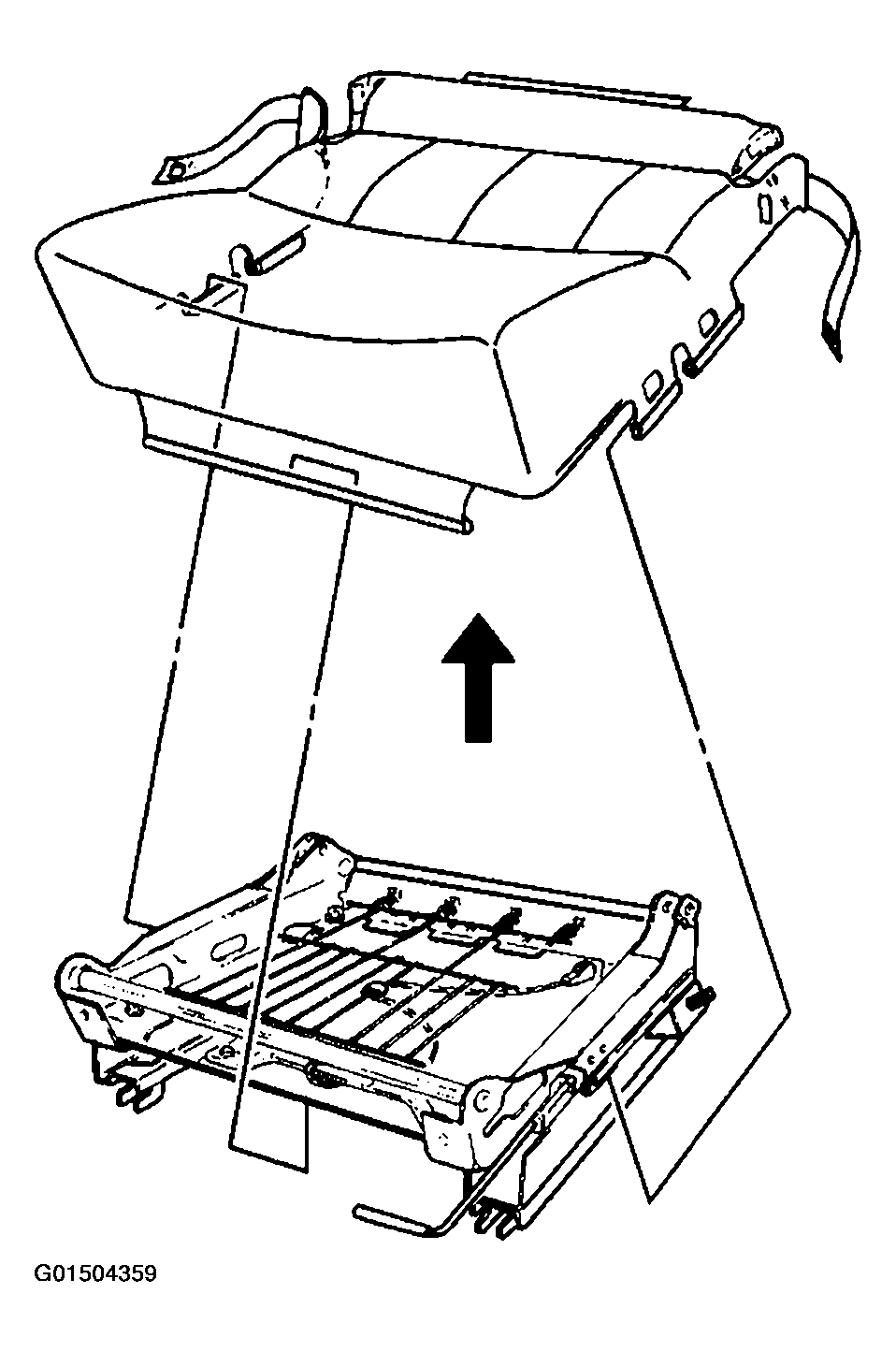

    Fig 2: Installing Front Seat
    G01504359Courtesy of GENERAL MOTORS CORP.
