Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the front seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  3. Disconnect the electrical connectors, as required.
  4. Unfasten the J-retainer on the outboard side of the seat cushion cover.
  5. Slide up the sewn side of the cushion cover up in order to expose the recliner/seat back attachment.
  6. Remove the roll pins from the hinge supports and the recliner.

    Discard the roll pins.

  7. Remove the recliner to seat frame pivot bolts.
  8. Remove the front seat back from the front seat.

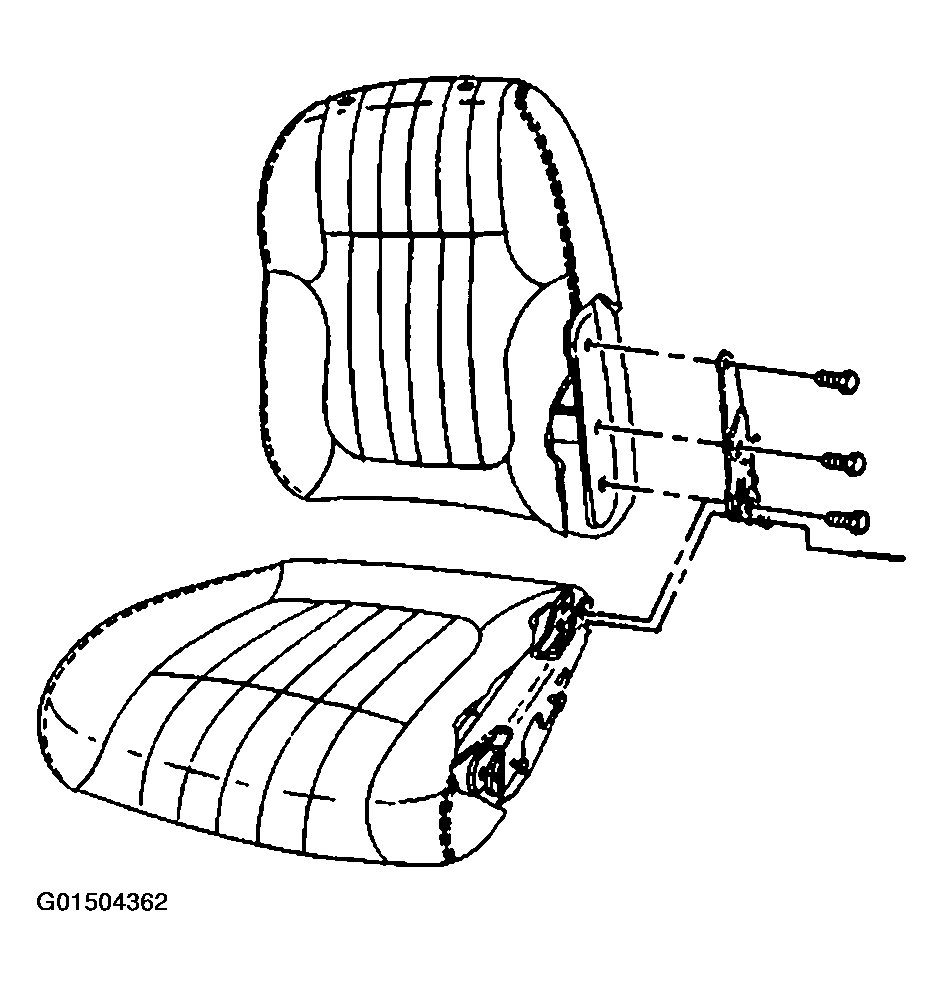

    Fig 1: Removing Front Seat Back From Front Seat
    G01504362Courtesy of GENERAL MOTORS CORP.
