Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recliner control mechanism from the seat.
  2. Install the 2 new recliner front roll pins (3).
  3. Install the front seat back. Refer to SEAT BACK REPLACEMENT - FRONT  .
  4. Install the front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

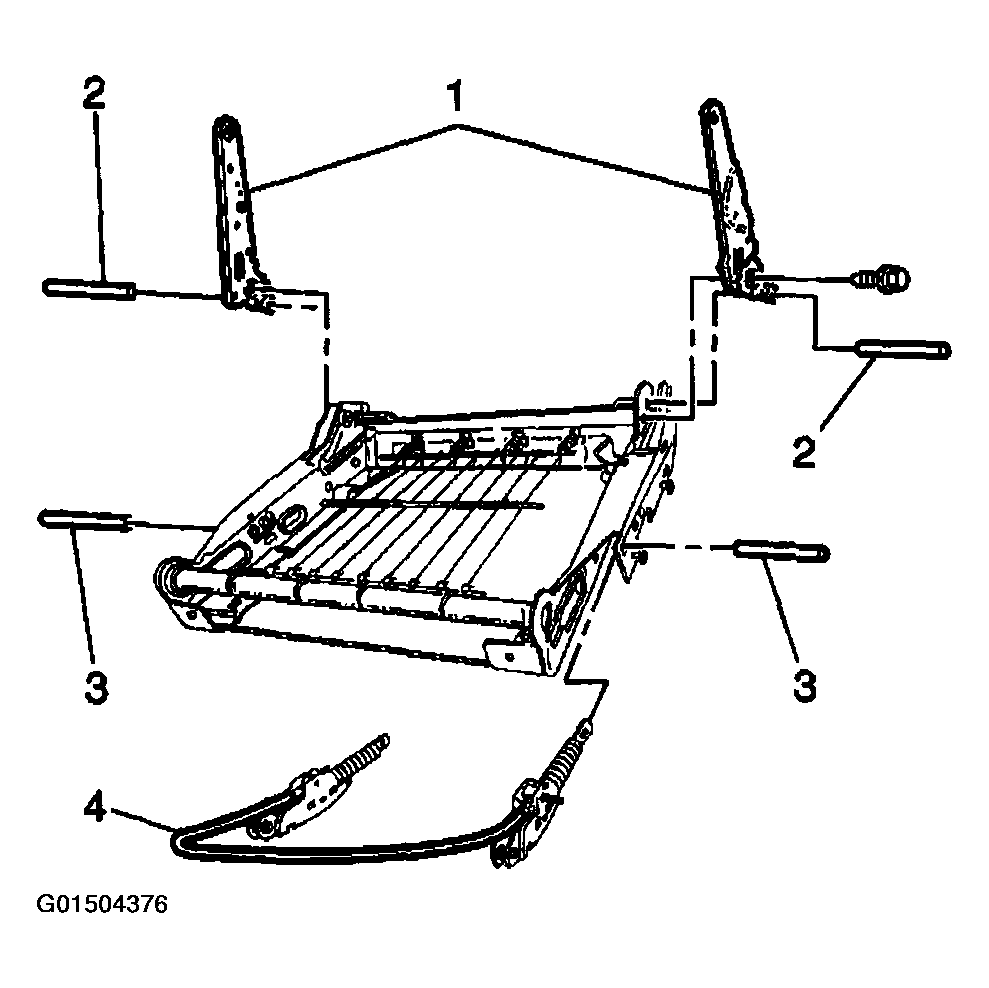

    Fig 1: Installing Front Seat Back Recliner Control Mechanism To Seat
    G01504376Courtesy of GENERAL MOTORS CORP.
