Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat back pad to the seat frame.

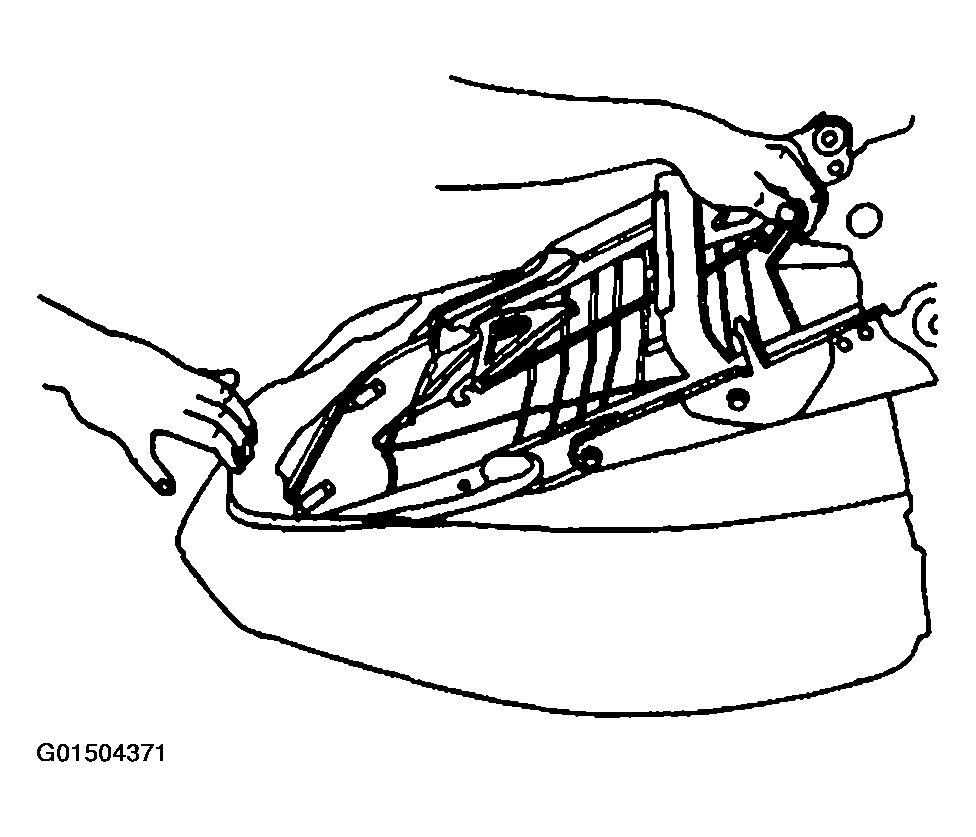

    Fig 1: Installing Front Seat Back Pad To Seat Frame
    G01504371Courtesy of GENERAL MOTORS CORP.
  2. Install the hog rings securing the seat back pad to the frame.
  3. Install the front seat back cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT  .

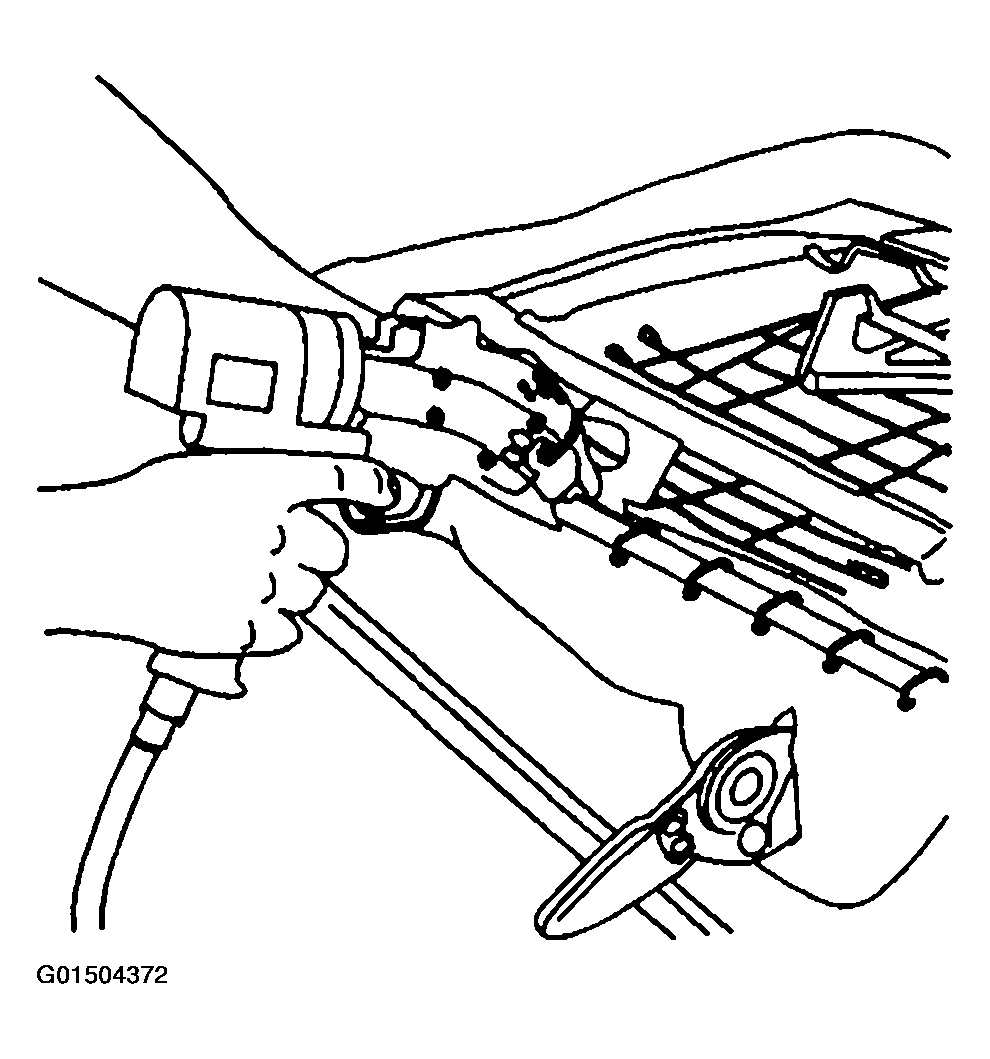

    Fig 2: Installing Hog Rings Securing Seat Back Pad To Frame
    G01504372Courtesy of GENERAL MOTORS CORP.
