Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fold down seat backs on the seat back frame.

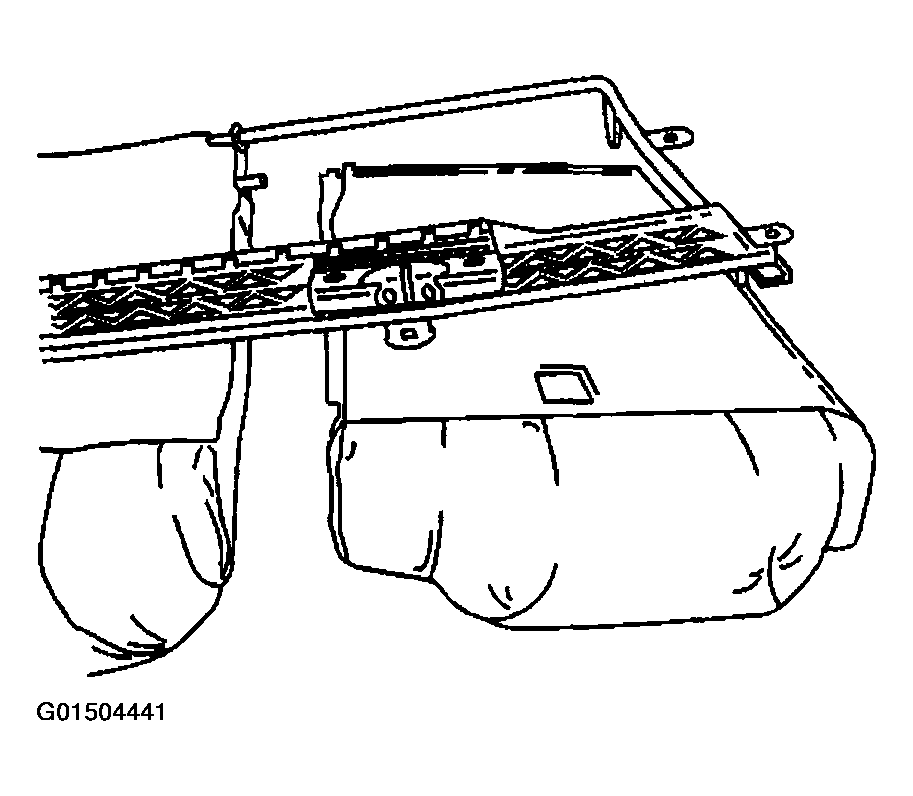

    Fig 1: Installing Fold Down Seat Backs On Seat Back Frame
    G01504441Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE Cautions and Notices
  2. Install the rear seat fold down pivot bolts (1) on the seat back frame.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the rear seat back bolsters. Refer to SEAT BACK BOLSTER REPLACEMENT - REAR SPLIT FOLDING  .
  4. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (STATIONARY)  or SEAT BACK REPLACEMENT - REAR (FOLDING)  .
    Fig 2: Installing Rear Seat Fold Down Pivot Bolts On Seat Back Frame
    G01504442Courtesy of GENERAL MOTORS CORP.
