Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Partially install the rear seat back trim cover to the pad.
Important: Do not exceed (1/4 in) diameter of hot glue to the seat cushion foam.

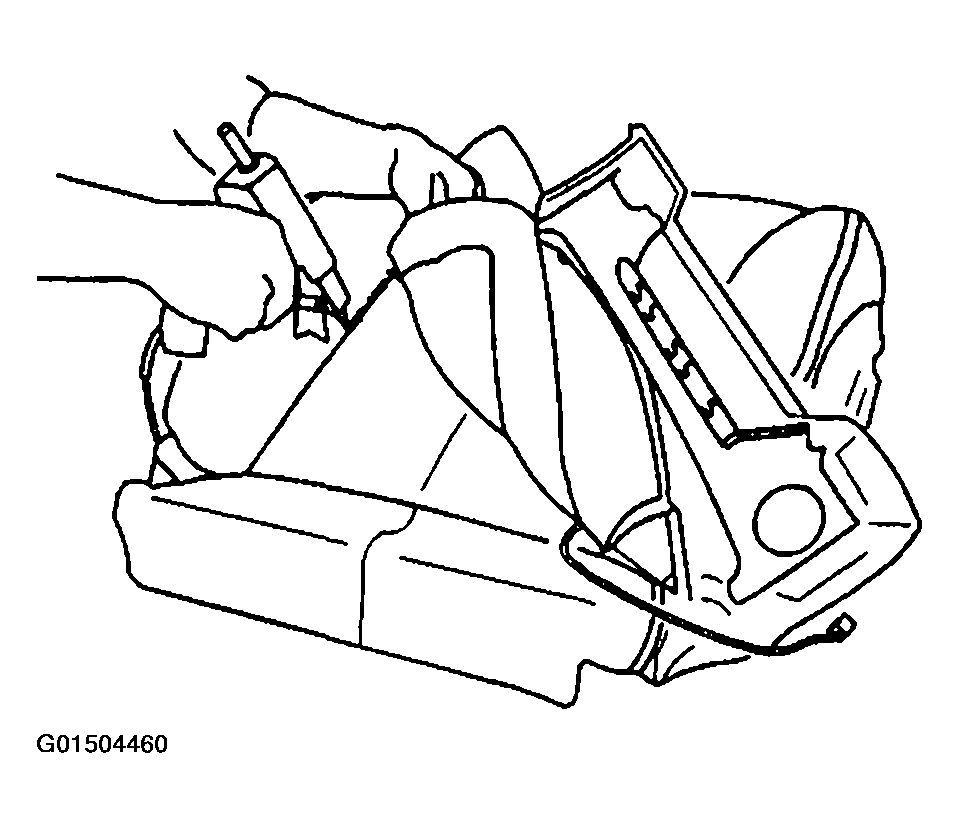

- Use a 138°C (360°F) hot glue gun. Apply a 6 mm (1/4 in) bead of GM P/N 12377914 or Special Bostik Glue in the top horizontal channel.
Important: Glue one seam at a time so glue does not harden prematurely
- Carefully place the trim cover over the foam so that the trim cover seam is positioned into the glue channel, within 30 seconds of the glue application.
- Use a straight edge of the same length as the glued seam. Apply downward pressure (1-4 psi). Hold the trim cover for 1 minute.
- Lift the front of the trim cover. Apply a 6 mm (1/4 in) bead of glue in the two side channels.
- Apply downward pressure (1-4 psi). Hold the trim cover (2) for 1 minute until a firm bond is made.
- Repeat this procedure for the other half of the cushion.

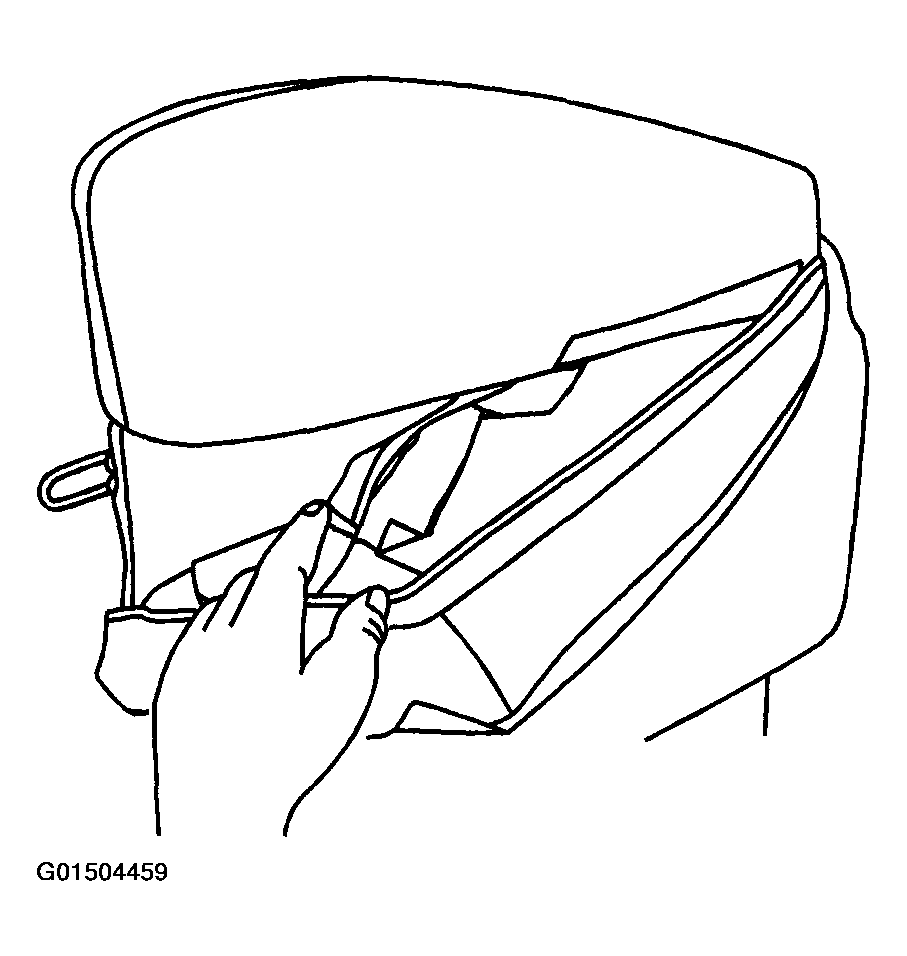

- Pull the rear seat back cover over the pad and pull over and under the edge.

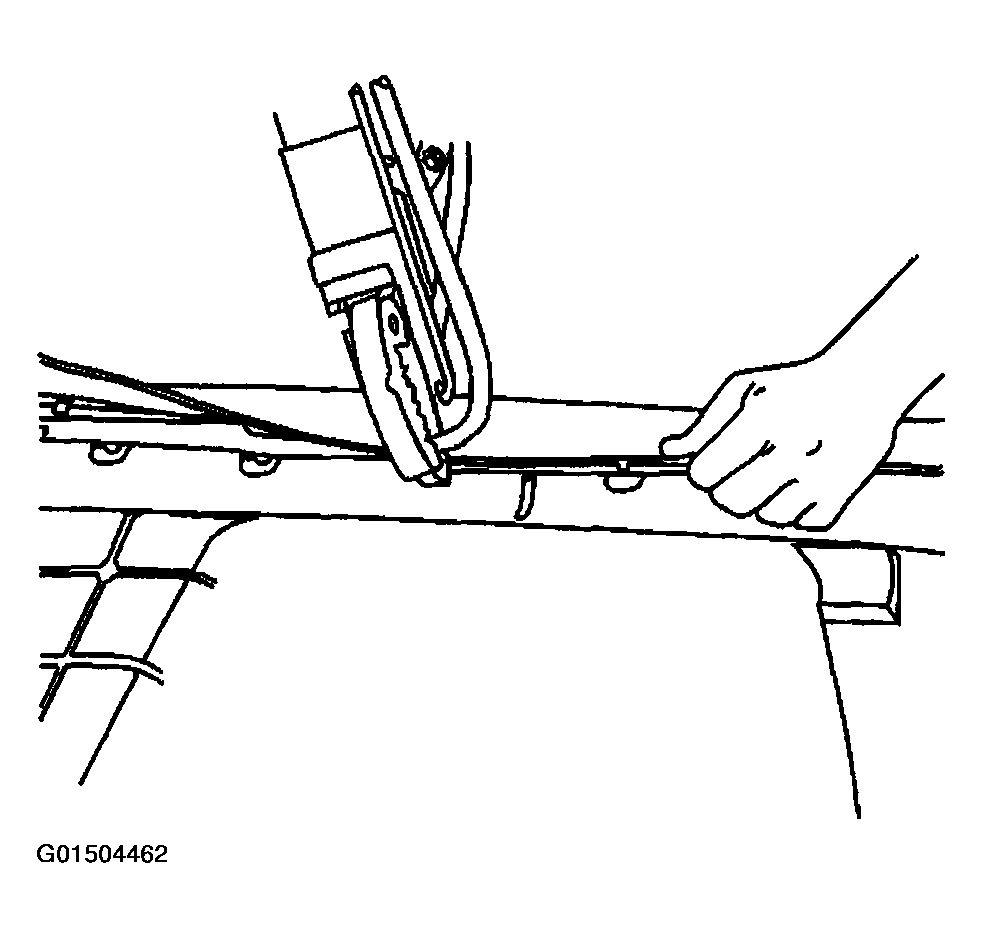

- Install the hog rings to the rear seat back cover.
- Install the rear seat armrest. Refer to ARMREST REPLACEMENT - REAR SEAT .
- Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (STATIONARY) or SEAT BACK REPLACEMENT - REAR (FOLDING) .
