Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the relay on the nylon clip.
  2. Press down and slide the relay towards the seat side.
  3. Install the harness connector to the relay (1,2).
  4. Insert the position assurance pins to secure the connectors.

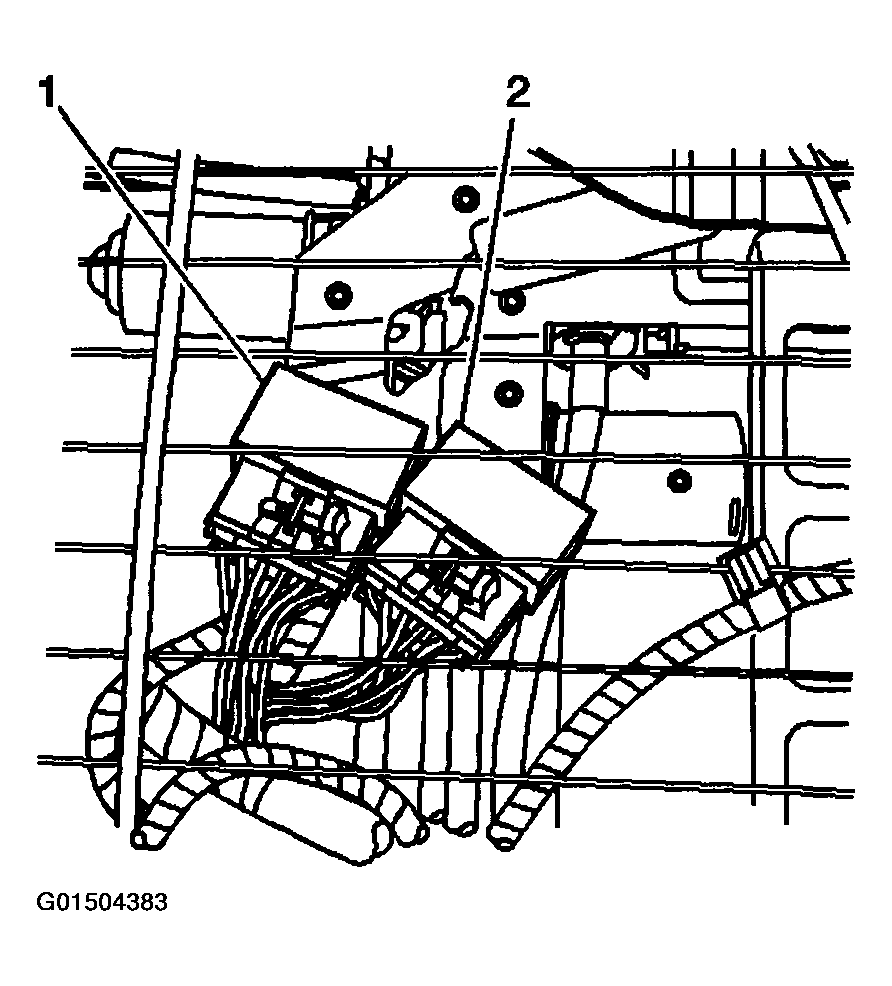

    Fig 1: Installing Harness Connector To Relay
    G01504383Courtesy of GENERAL MOTORS CORP.
  5. Engage the front seat hooks in the floorpan.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the bolts which secure the seat to the floorpan.

    Tighten

    Tighten the bolts to 42 N.m (31 lb ft).

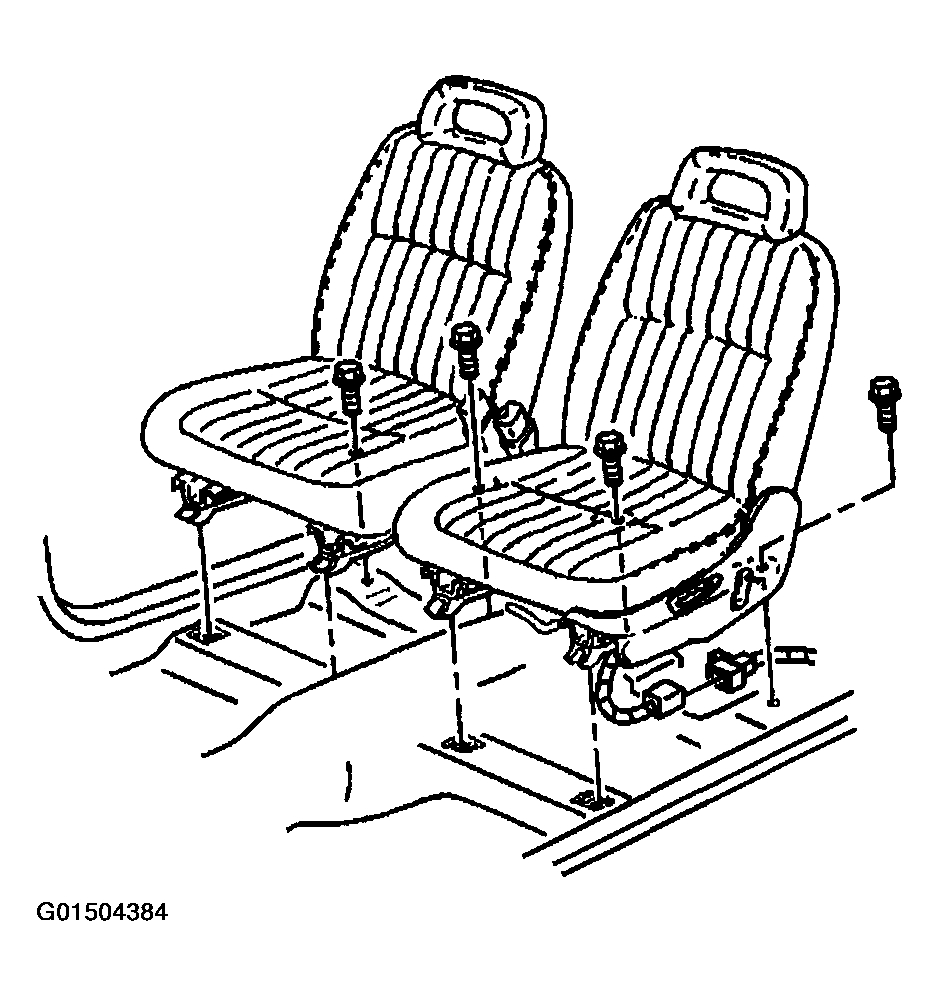

    Fig 2: Installing Bolts Which Secure Seat To Floorpan
    G01504384Courtesy of GENERAL MOTORS CORP.
