Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim plate from the front floor console. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector from the wiring harness in the front floor console.
  3. Using a small flat-bladed tool, release the retainer clips from the heated seat switch.
  4. Remove the heated seat switch from the console trim plate.

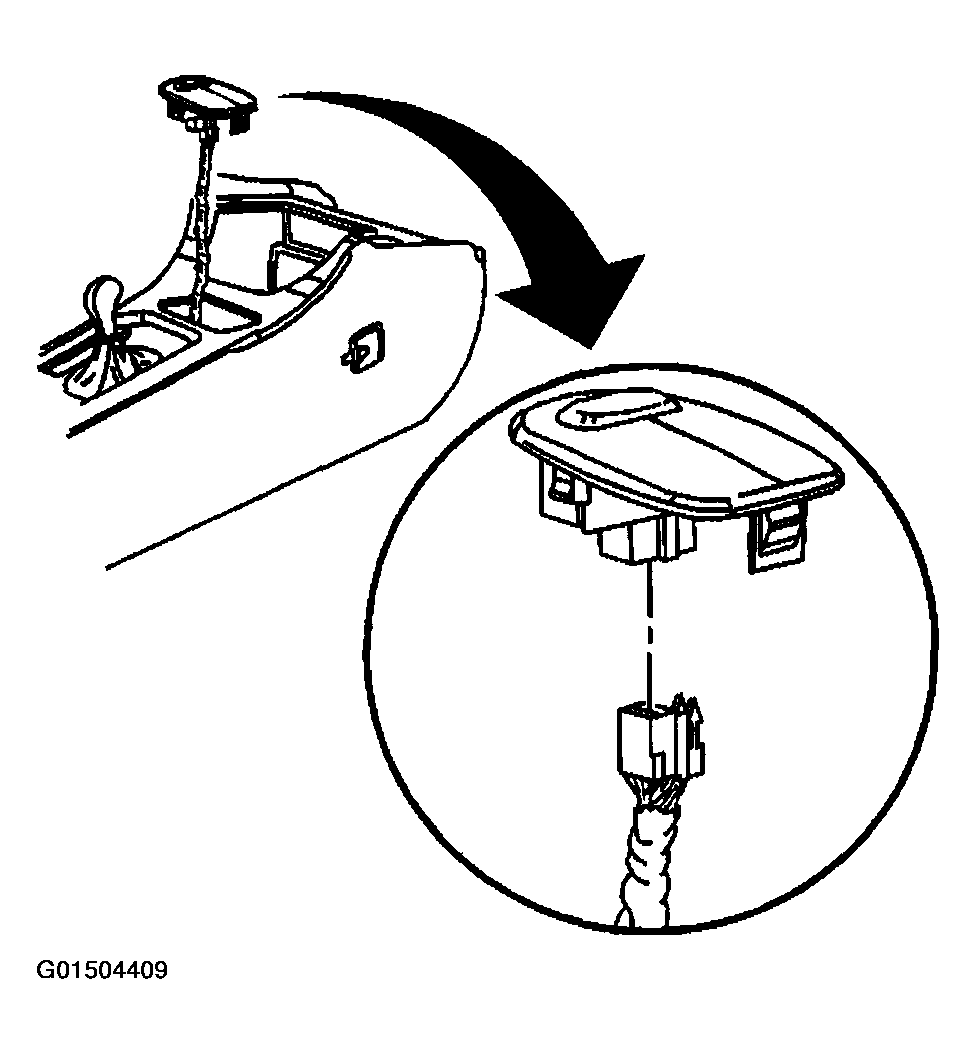

    Fig 1: Removing Front Heated Seat Switch From Console Trim Plate
    G01504409Courtesy of GENERAL MOTORS CORP.
