Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heated seat switch to the front floor console trim plate, pressing into place until fully seated.
  2. Connect the electrical connector to the console wiring harness.
  3. Install the trim plate to the front floor console. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE in Instrument Panel, Gages and Console.

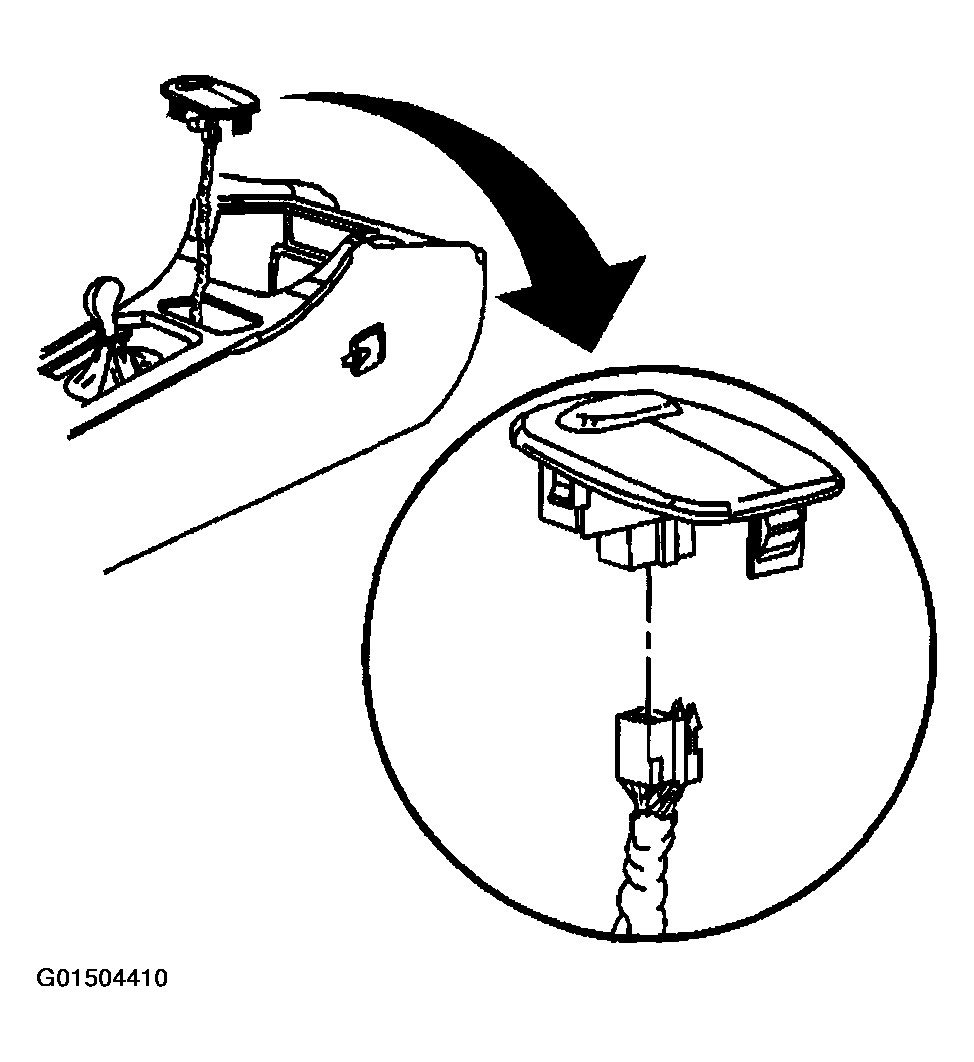

    Fig 1: Installing Front Heated Seat Switch To Front Floor Console Trim Plate
    G01504410Courtesy of GENERAL MOTORS CORP.
