Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the guide into the seat back frame.
  2. Firmly push the guide inward in order to lock the guide into the seat back frame.
  3. Install the hook front seat back trim cover J-retainer.
  4. Install the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT  .
  5. Return the seat back to the original position.

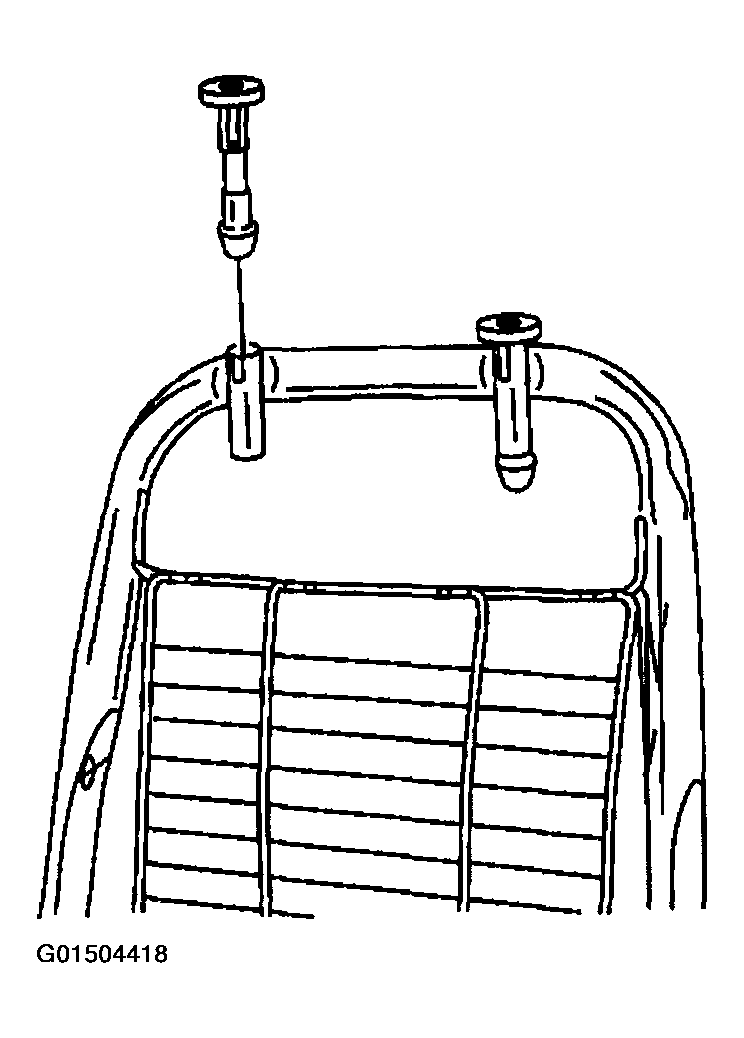

    Fig 1: Installing Guide Into Seat Back Frame
    G01504418Courtesy of GENERAL MOTORS CORP.
