Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - FRONT (TWO-WAY MANUAL)  or SEAT ADJUSTER REPLACEMENT - FRONT (SIX-WAY POWER)  .

    Important:  Initial removal of the nut securing the motor support bracket is suggested to gain access to the cable connector at motor for the inboard, passenger side or the outboard, driver side rear vertical gearnut.

  2. Remove the cables by squeezing the oblong connector at the motors and the vertical/horizontal actuators.
  3. Carefully flex the cable and remove it from the motor and horizontal/vertical actuator.

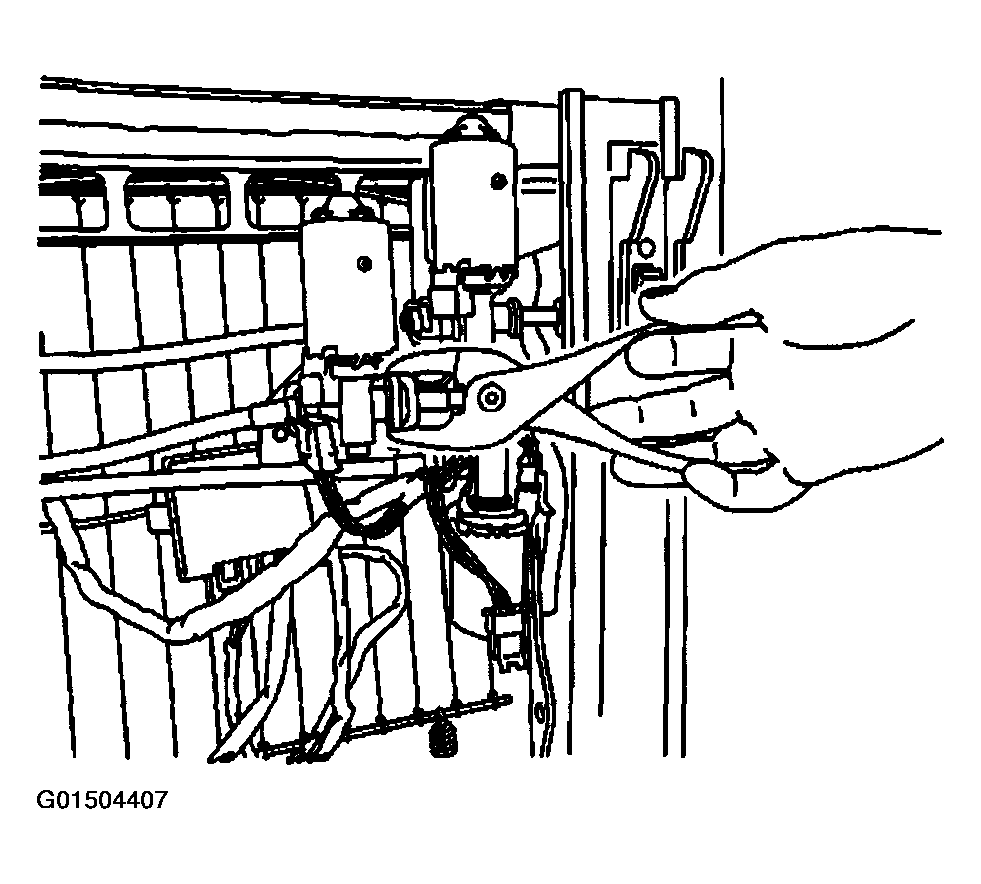

    Fig 1: Removing Drive Cable From Motor And Horizontal/Vertical Actuator
    G01504407Courtesy of GENERAL MOTORS CORP.
