Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (STATIONARY)  or SEAT BACK REPLACEMENT - REAR (FOLDING)  .
  2. Remove the bolts from the rear seat armrest.
  3. Remove the rear seat armrest the rear seat back.

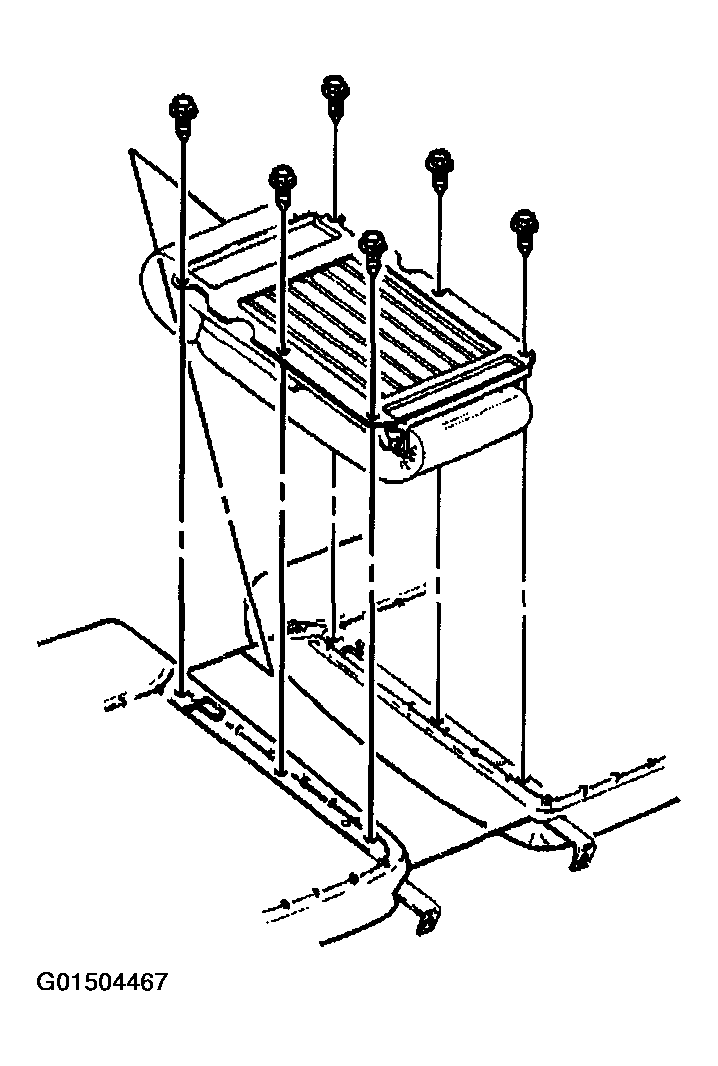

    Fig 1: Removing Rear Seat Armrest From Rear Seat Back
    G01504467Courtesy of GENERAL MOTORS CORP.
